Description

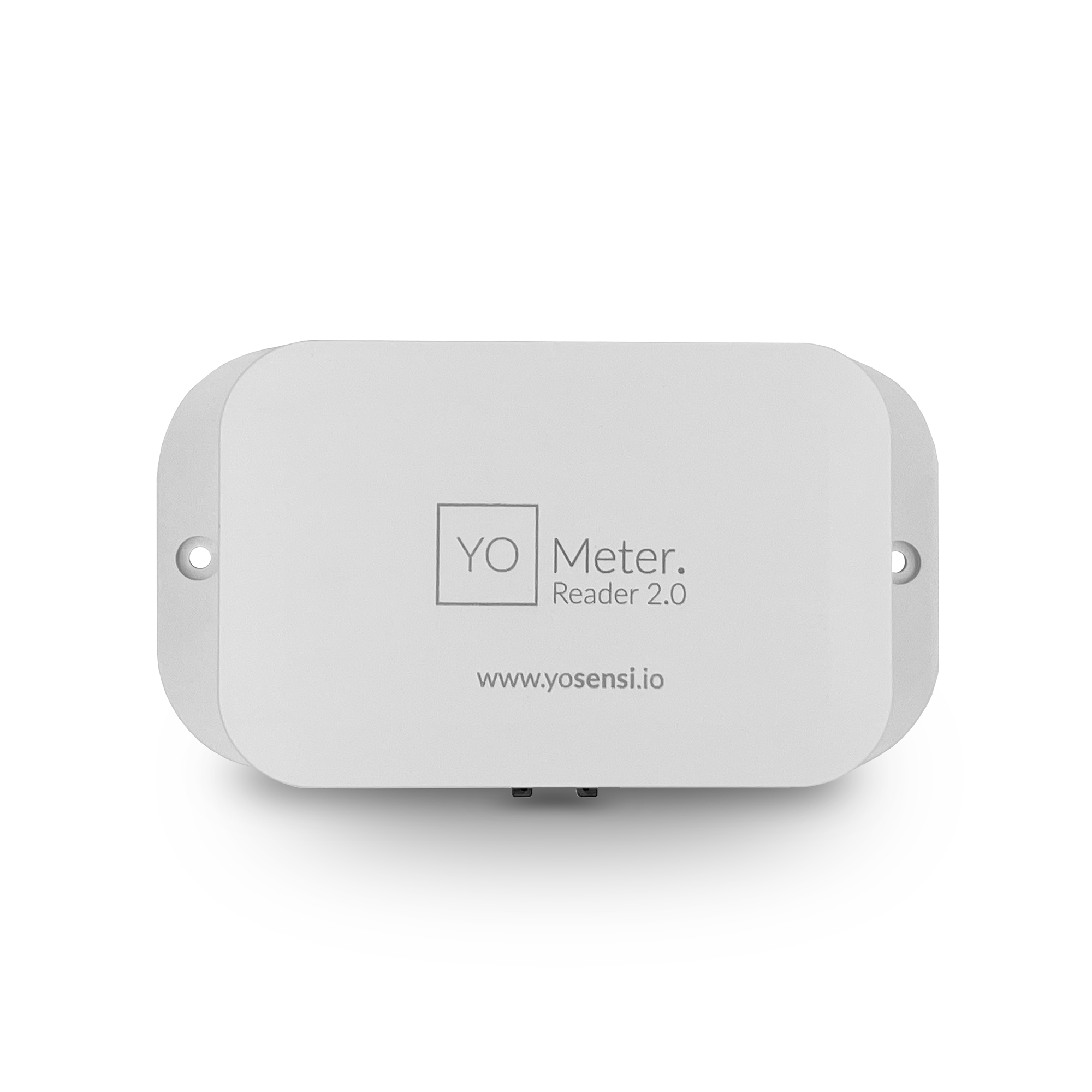

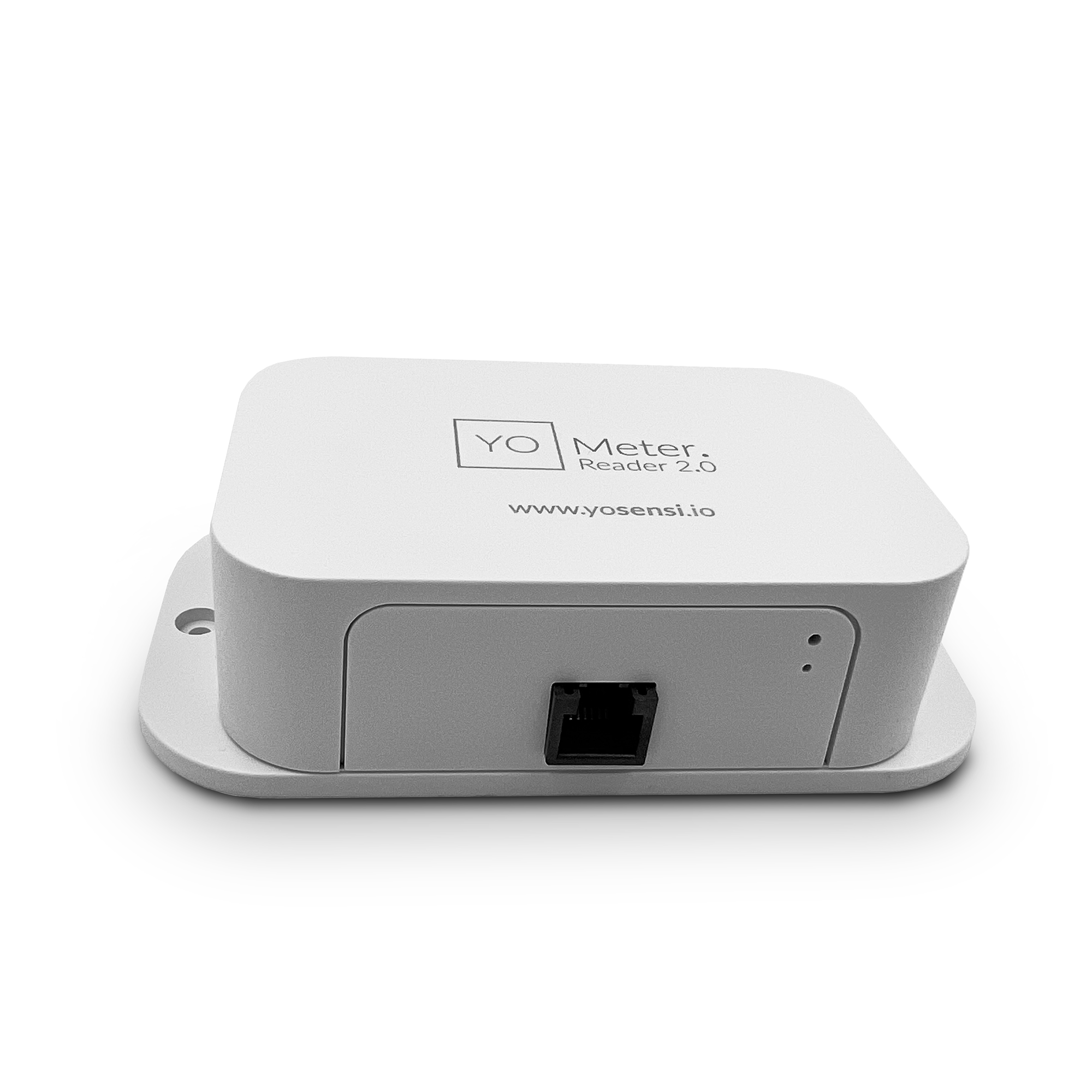

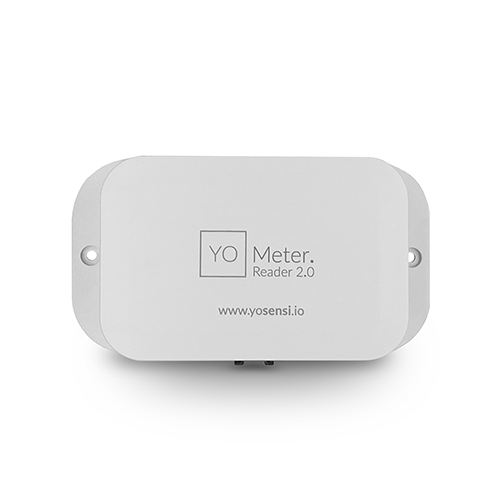

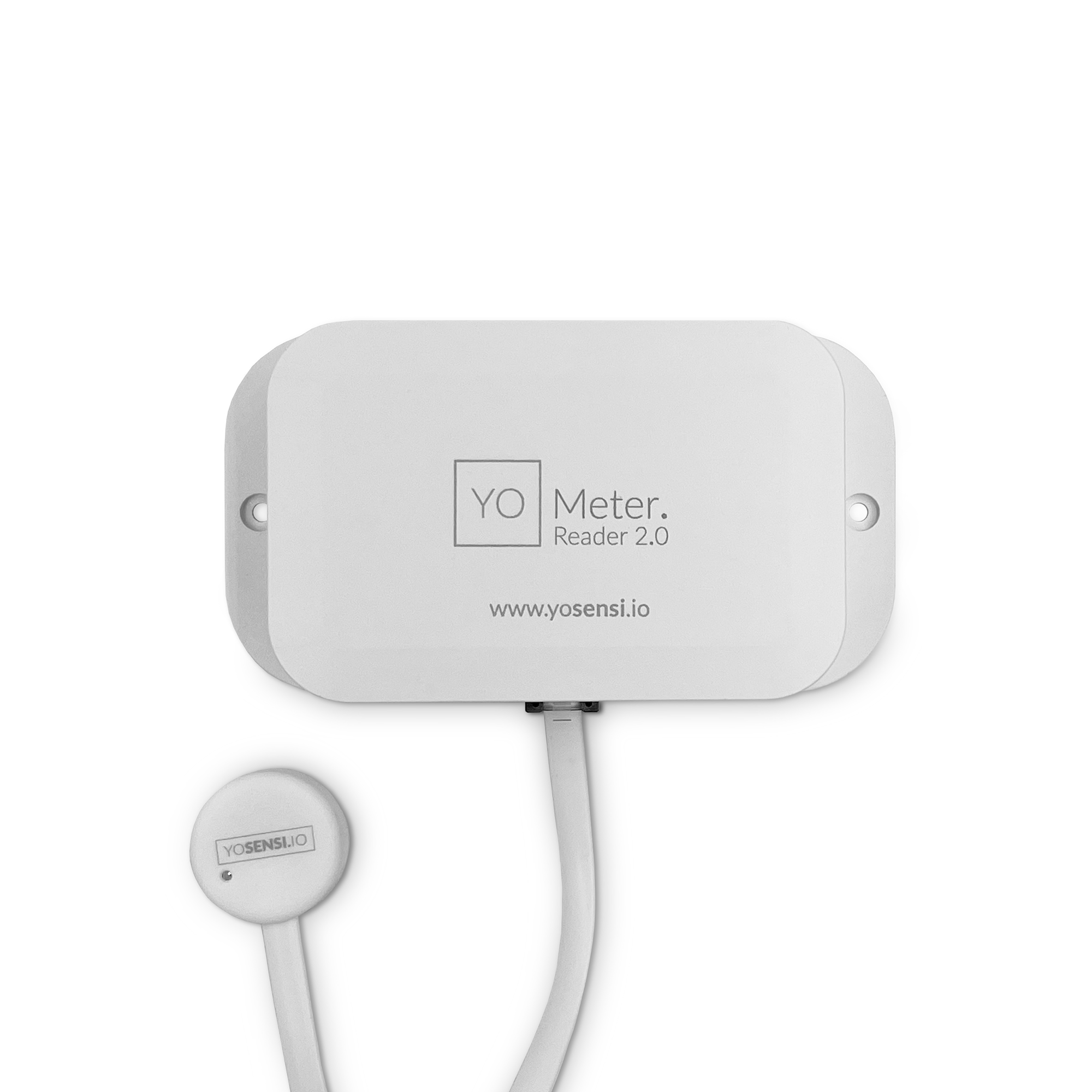

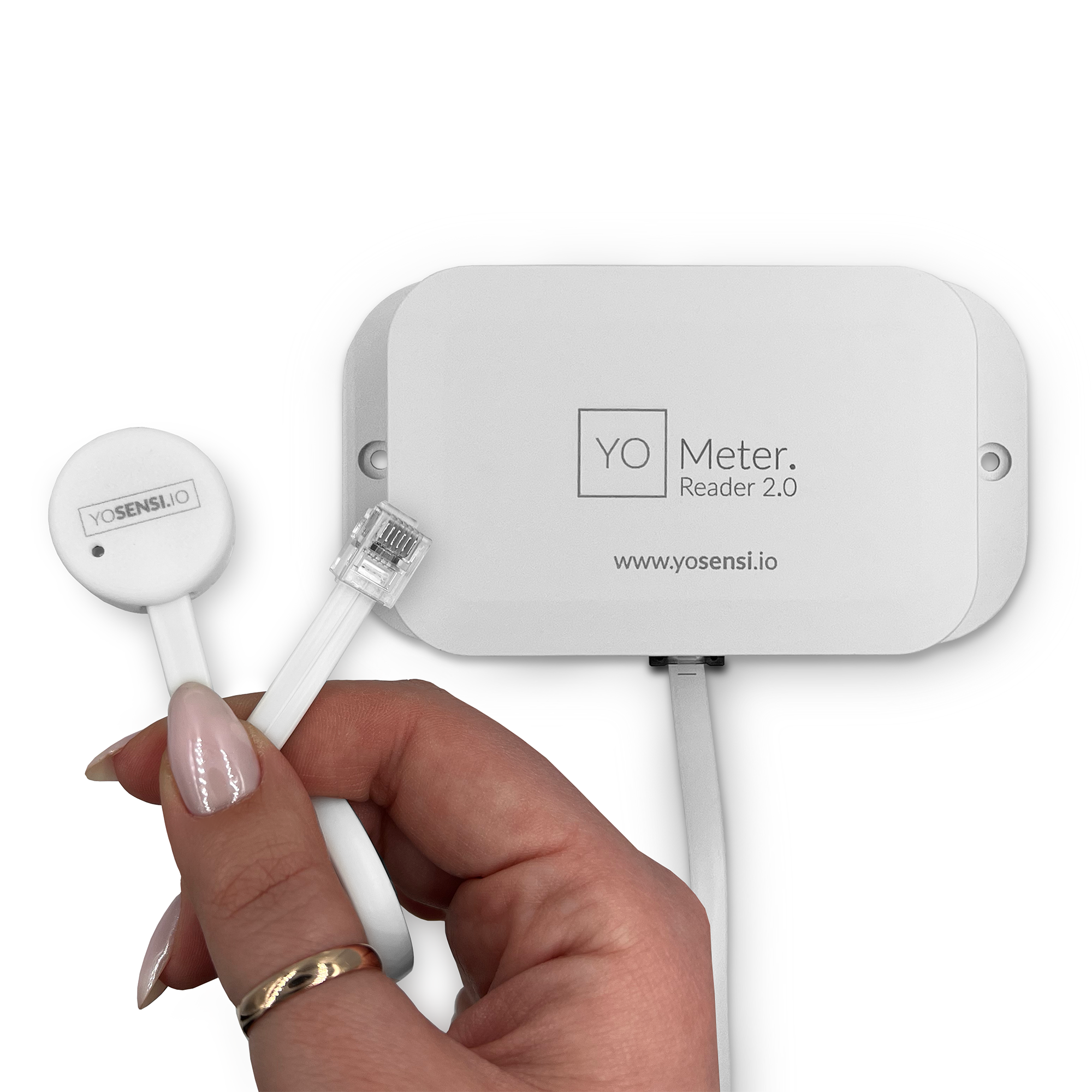

YO Meter Reader 2.0 is a battery-powered LoRaWAN device enabling data reading from LED pulse detector. Additionally, the device has built-in temperature and humidity sensors.
It provides data transmission, eliminating the need for manual readings and potential errors. Its versatile applications include smart metering, energy consumption monitoring, and billing systems.
YO Meter Reader 2.0 with an LED pulse detector is particularly effective in large-scale energy management. It’s easy to install and operate, allowing seamless integration with existing systems and streamlining energy management processes.
Examples of applications for YO Meter Reader with an LED pulse detector include:
Smart Metering: Collecting and transmitting data from utility meters to a central system. Measuring water consumption makes it possible to detect leaks and uncontrolled water consumption, allowing the causes to be identified.
Building Automation: Integrating with building automation systems for monitoring and controlling energy usage in commercial buildings, leading to cost reduction and improved efficiency.
Industrial Automation: Utilizing YO Meter Reader in industrial automation systems to monitor and control energy consumption in manufacturing plants, enhancing operational optimization and productivity.
YO Meter Reader with an LED pulse detector is versatile, user-friendly, and facilitates efficient energy management, cost reduction, and promotion of sustainable practices across various environments, from residential to commercial to industrial.
Key features
- Data reading from various types of meters and sensors
- Advanced LoRaWAN device with LED pulse detector
- Data transmission eliminating the need for manual readings
- Water, gas consumption monitoring and performance optimisation
- Battery-powered device
- Supported LoRaWAN network type: private or public and connection over ABP or OTAA
- ISM band selectable for regional needs (EU868, US915, AU915, and AS923)
- Configuration via Bluetooth Low Energy 5.0
- Firmware update over BLE
- Yosensi Configuration Web Tool for convenient firmware updates and device configuration
- Wide network coverage and very low energy consumption
- High-quality product made in EU

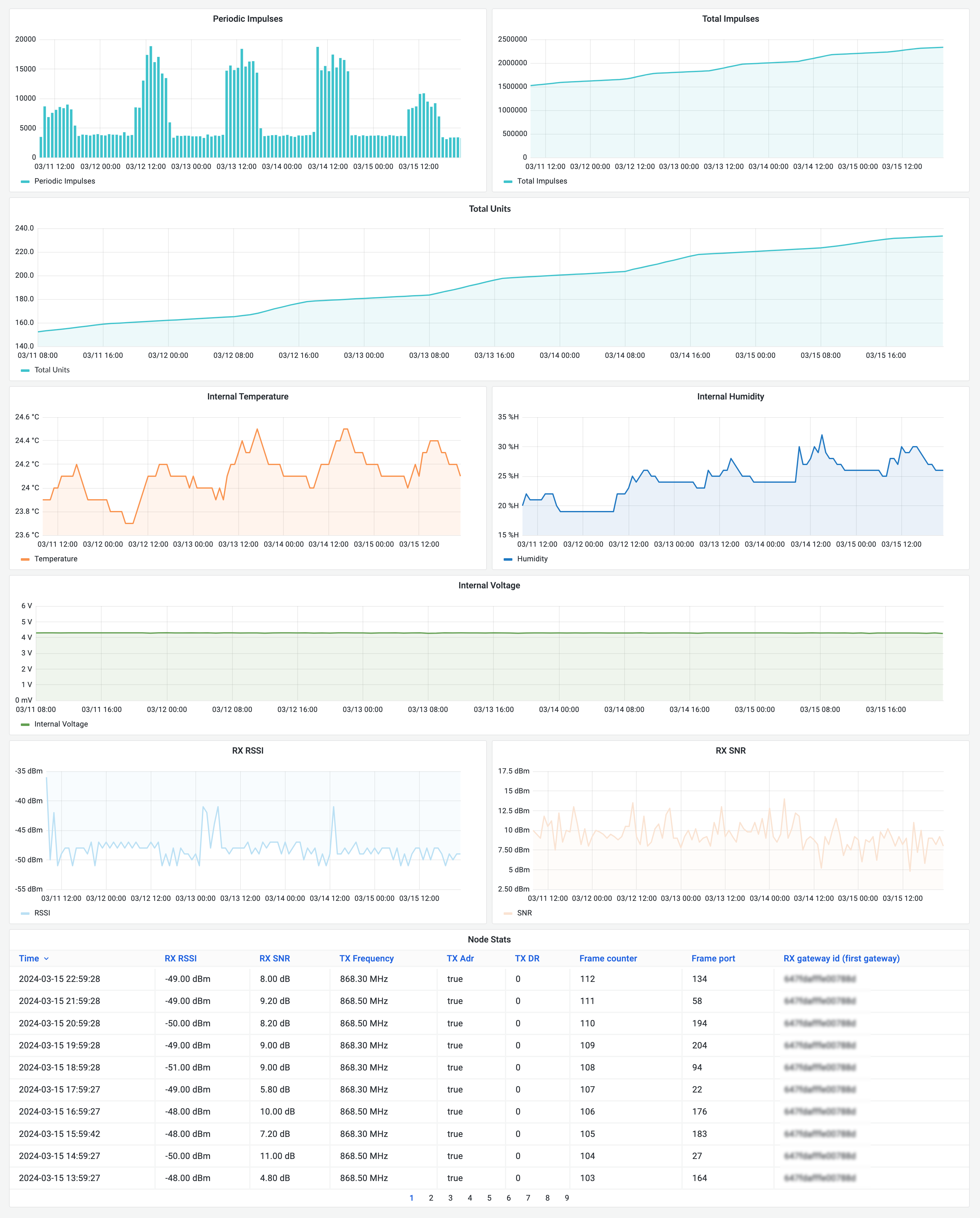

Sample charts of collected data
Parameters
| Tx Power: | • LoRa EU868: to +14 [dBm] • LoRa US915, AU915, AS923: to +22 [dBm] • Bluetooth Low Energy (BLE): -20 to +6 [dBm] |
| Power supply: | • 3 x AA battery (3 x 1,5 V) |
| Power consumption: | • Maximum: 120mA (4,5 VDC) |
| Weight: | • 106g |
| Certificates: |
|

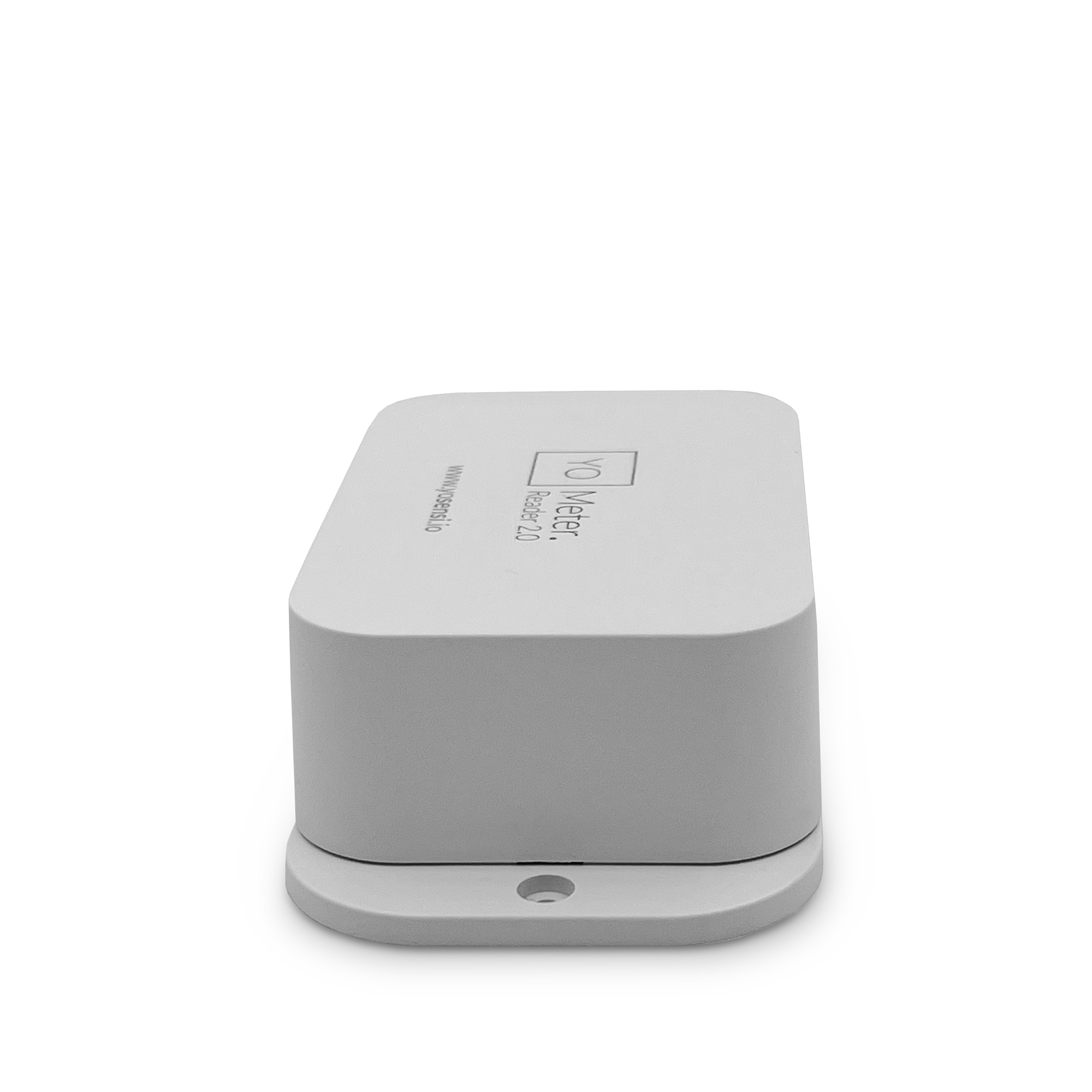

Enclosure
| Dimensions: | • Height: 35 mm • Width: 67,3 mm • Depth: 124,3 mm |
| Colour: | White |
| Installation: | • Horizontal • Vertical (can be screwed to the wall or ceiling) |
| Enclosure material: | ABS |
| Level of protection: | IP40 |
Sensor measuring range
Temperature:
| Measurement range: | from -40°C to 125°C (-40°F to 257°F) |
| Accuracy: | ±0.2°C (32.36°F) (in temperatures from 5°C to 60°C (41°F to 140°F)) |
Relative Humidity:
| Measurement range: | from 0% to 100% |
| Accuracy: | ±2% (20% to 80%) |
Periodic counter:
| Measurement range: | 0-2147483647 (int32) |
Persistent counter:
| Measurement range: | 0-2147483647 (int32) |
Utilities (energy, water, gas) consumption [kWh], [J], [m3], etc.:
| Measurement range: | 0-214748364.7 (int32, precision 1) |
