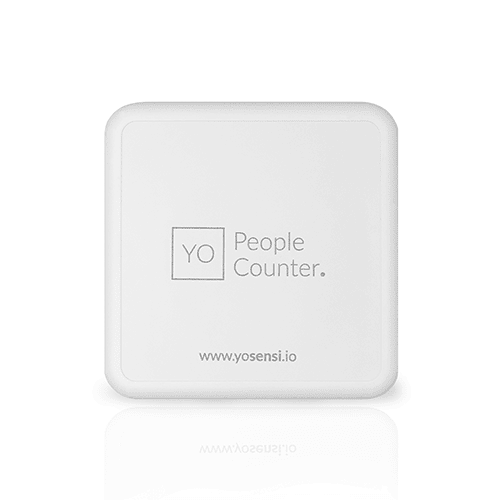

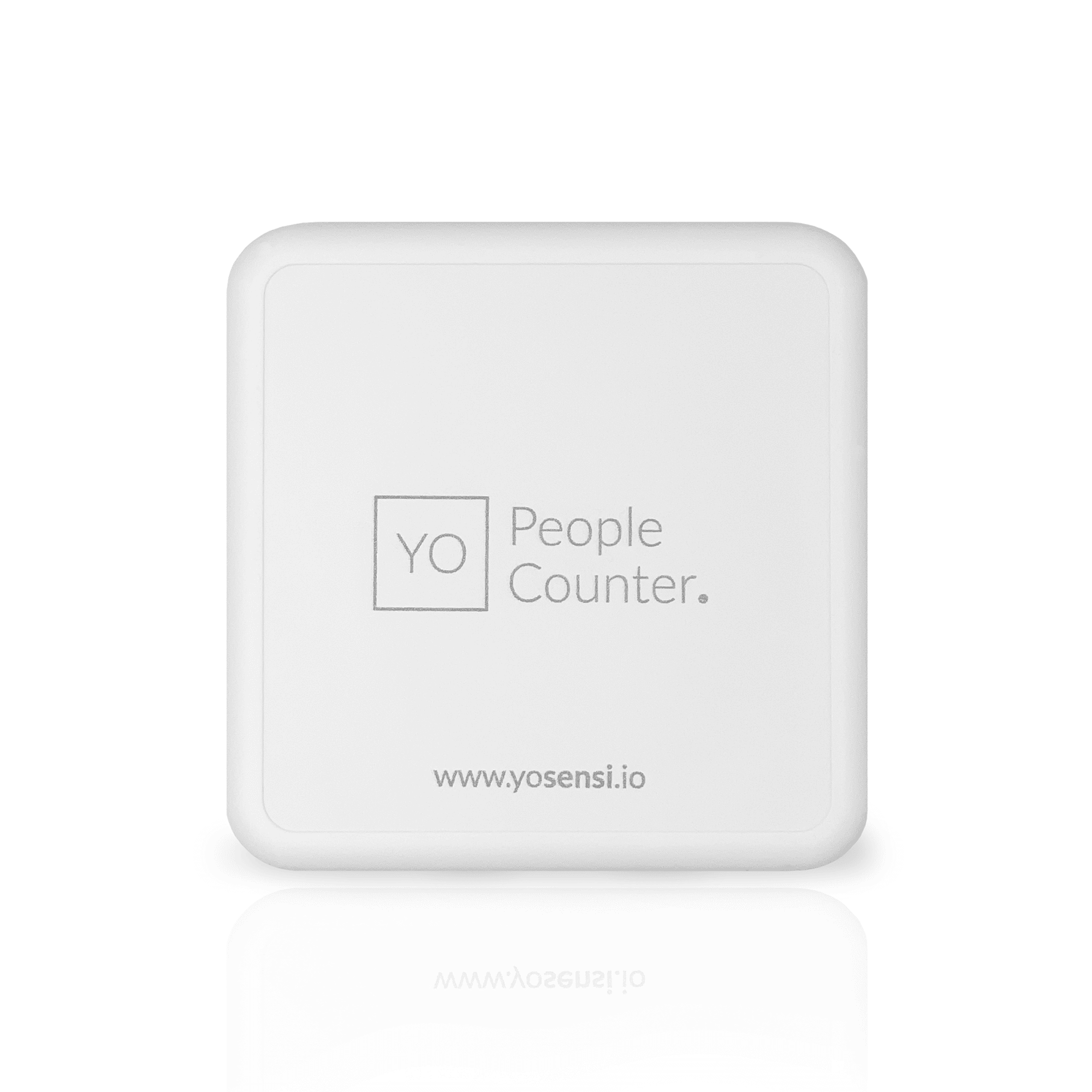

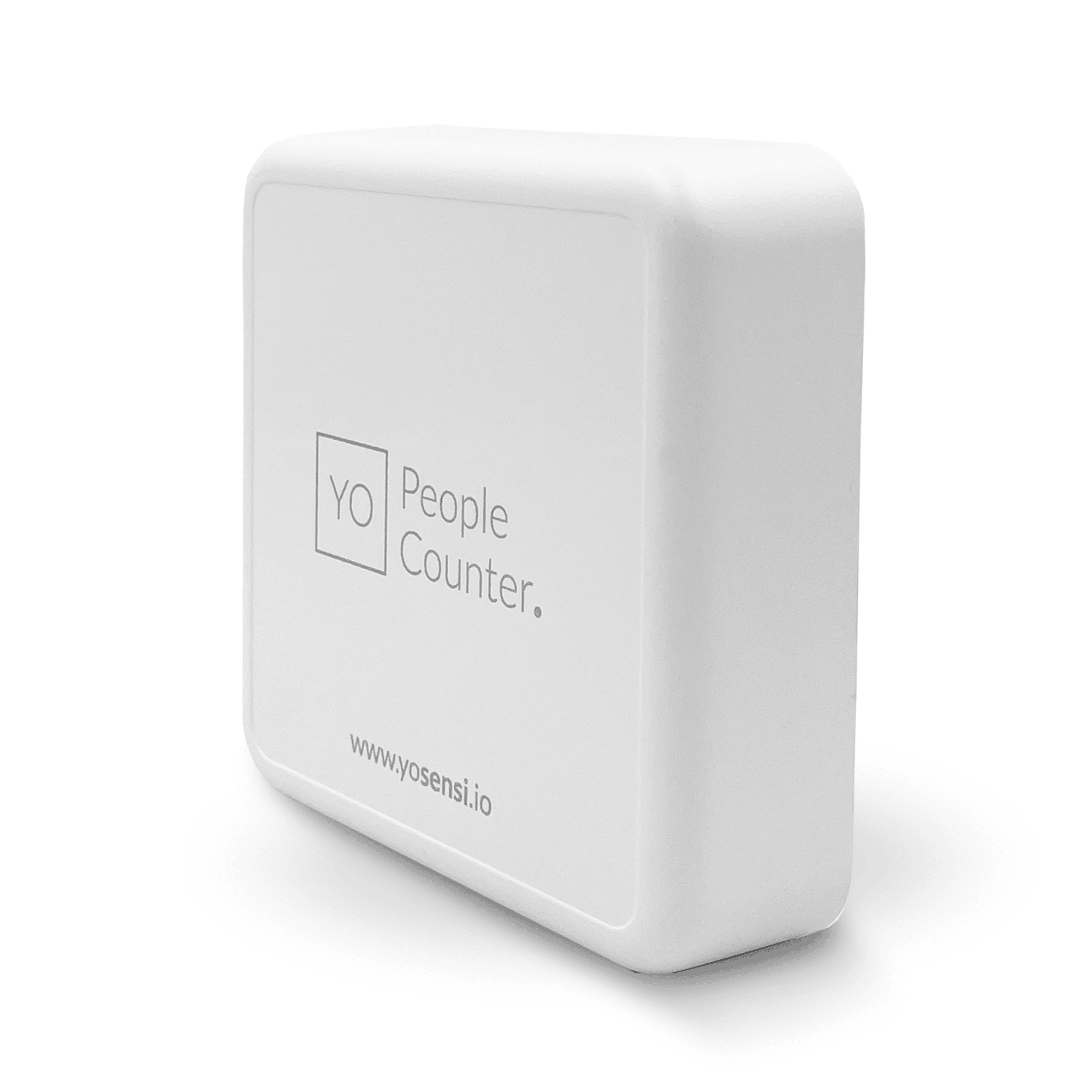

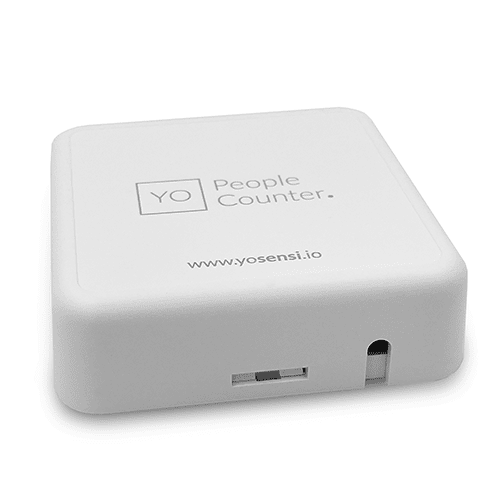

YO People Counter
Enclosure type
• IP40, UL94-V0
Band
• EU868, US915, AU915, AS923
Colors
white
Certificate
•
quote
request
Description
YO People Counter is a bi-directional device that uses a novel 24 GHz radar transceiver to detect motion from both directions simultaneously. This device detects a person moving independently when a certain distance exists between people. This device counts people flow in buildings, exhibitions, airports and more.
The device communicates wirelessly over LoRaWAN. We are a member of the LoRa Alliance, which is responsible for data transmission security.
All our devices are manufactured in the European Union.
Key features
- A more cost-effective camera-free solution that preserves customer privacy
- Possibility of registering people entering and leaving the building thanks to bi-directional counting
- Supported LoRaWAN network type: private or public and connection over ABP or OTAA
- ISM band selectable for regional needs (EU868, US915, AU915, and AS923)
- Configuration over Bluetooth Low Energy 5.0
- Firmware update over BLE
- Yosensi Configuration Web Tool for convenient firmware updates and device configuration
- Wide network coverage and low energy consumption
- High-quality product made in the EU

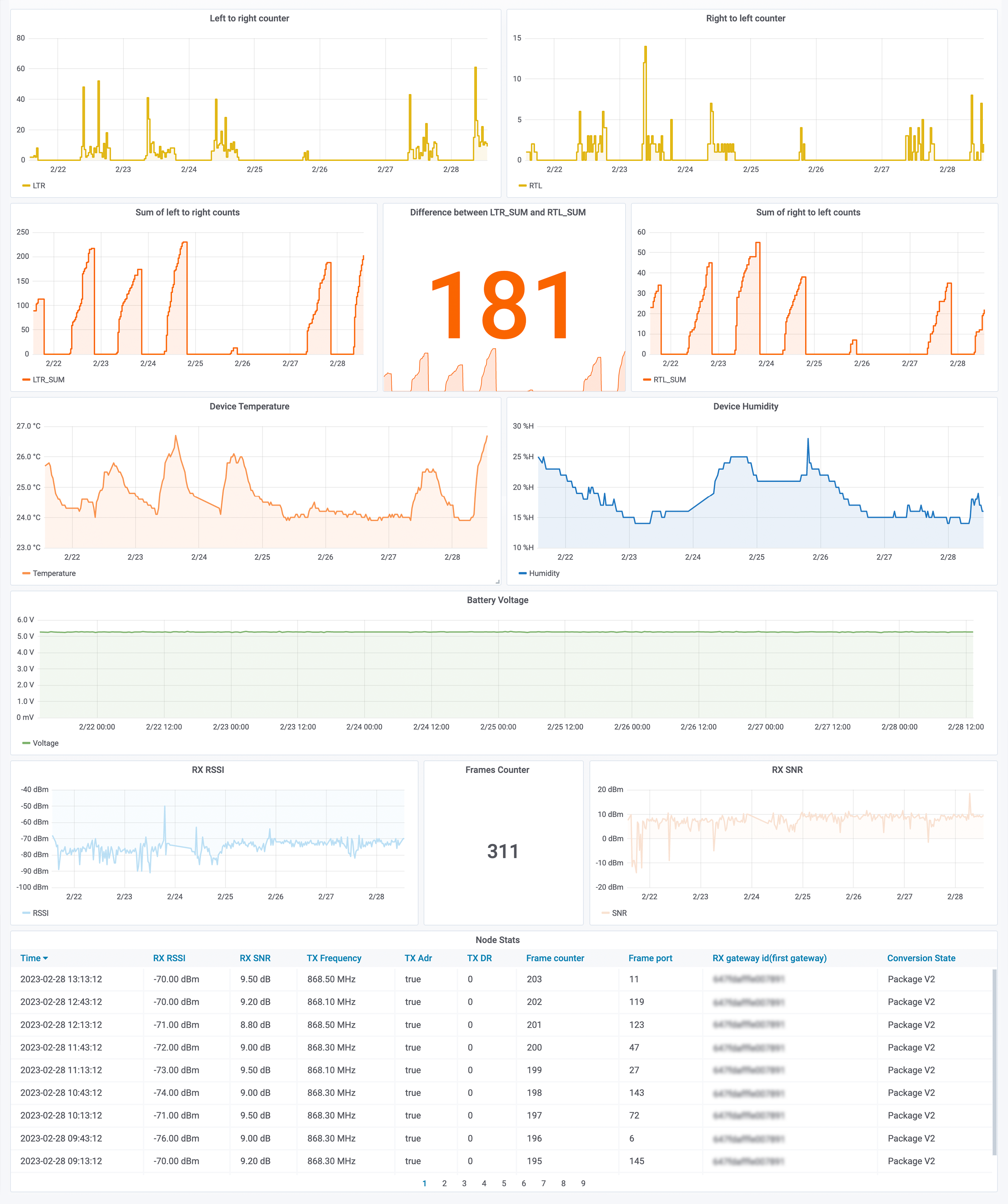

Sample charts of collected data
Parameters
| Tx Power: | • LoRa EU868: to +14 [dBm] • LoRa US915, AU915, AS923: to +22 [dBm] • Bluetooth Low Energy (BLE): -20 to +6 [dBm] |
| Power supply: | • USB-C 5V DC • 6 - 30 V DC • 5 - 21 V AC |
| Power consumption: | • Maximum: 1,1 A (12 VDC) |
| Weight: | • 91 g |
| Certificates: |
|

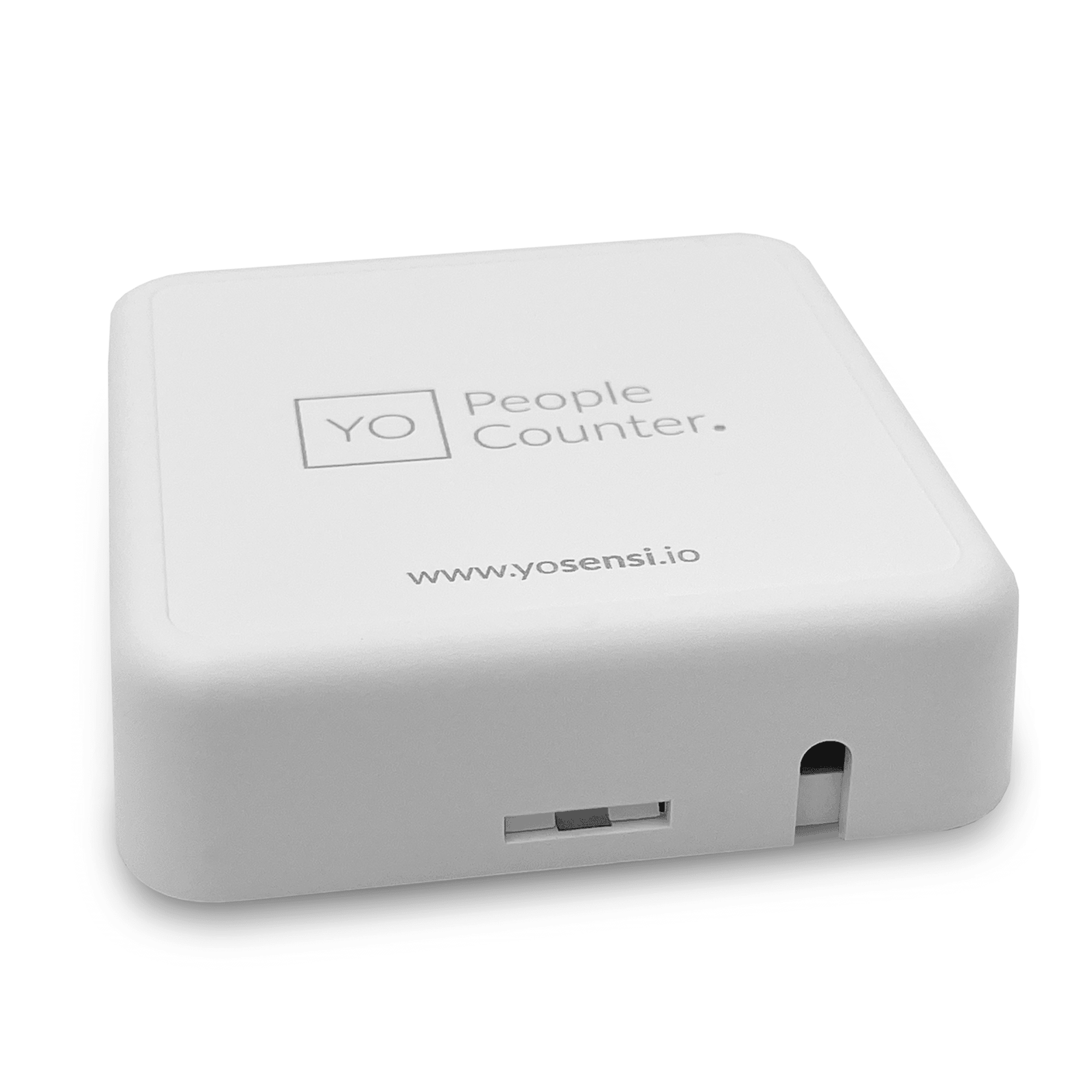

Enclosure
| Dimensions: | • Height: 25.5 mm • Width: 86 mm • Depth: 86 mm |
| Colour: | White |

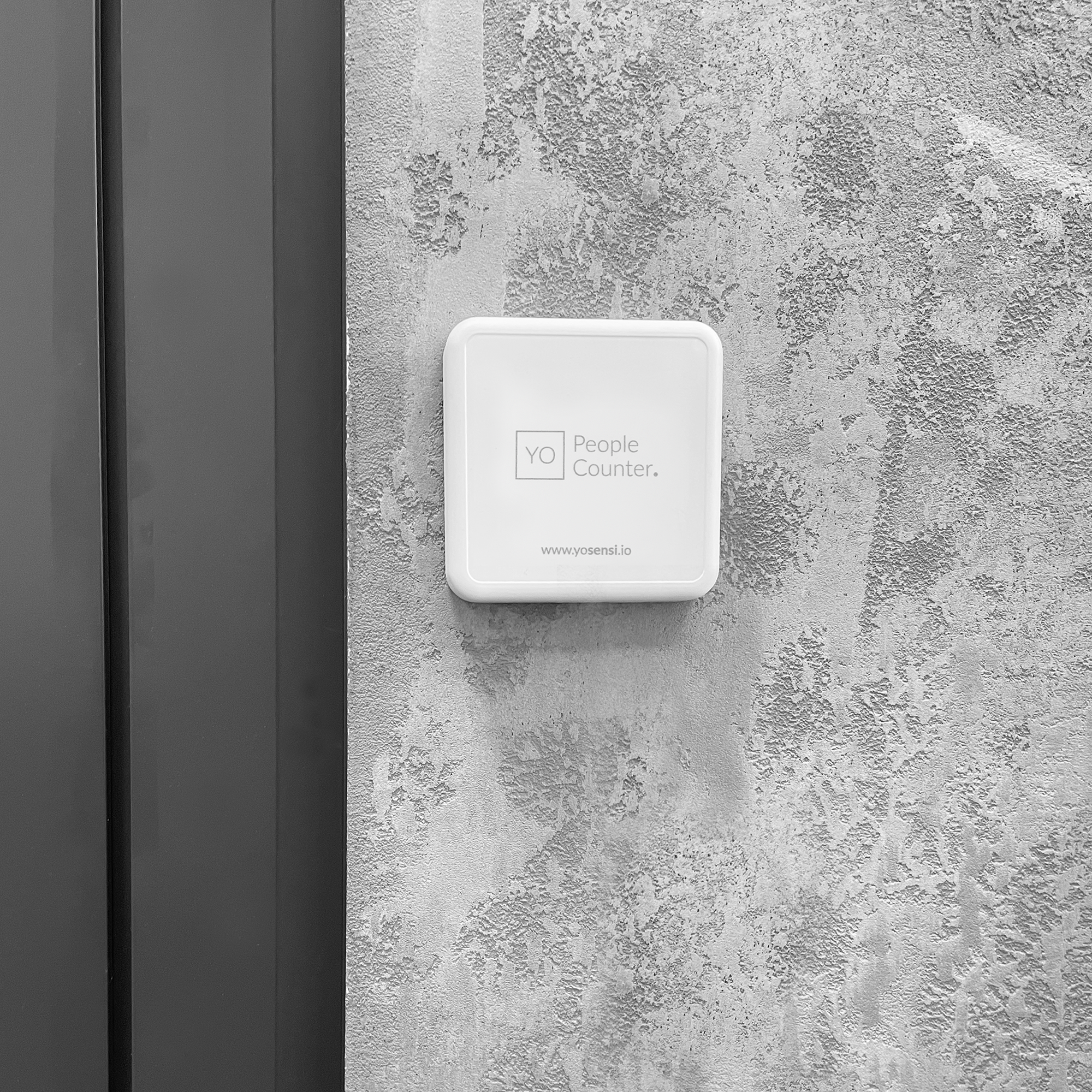

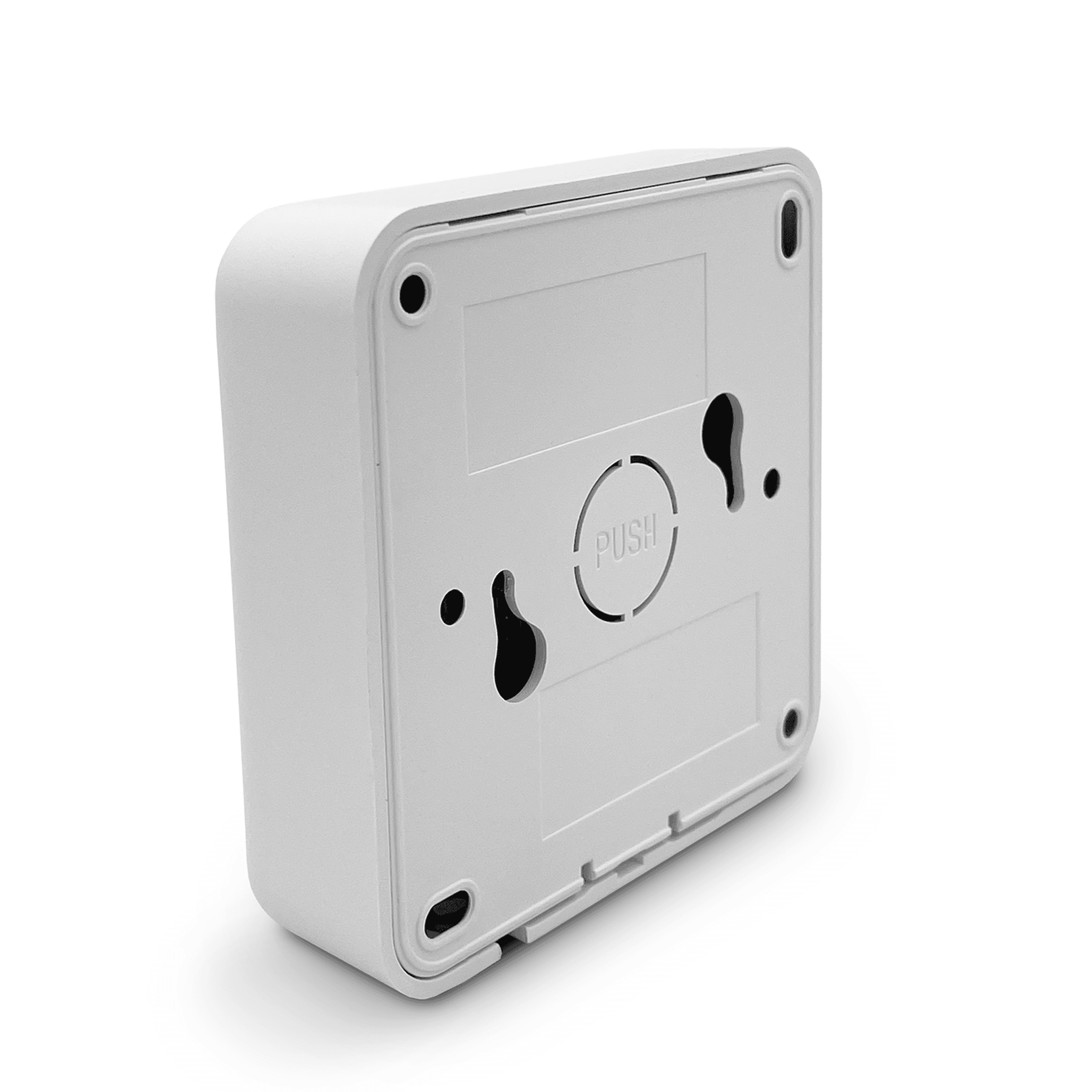

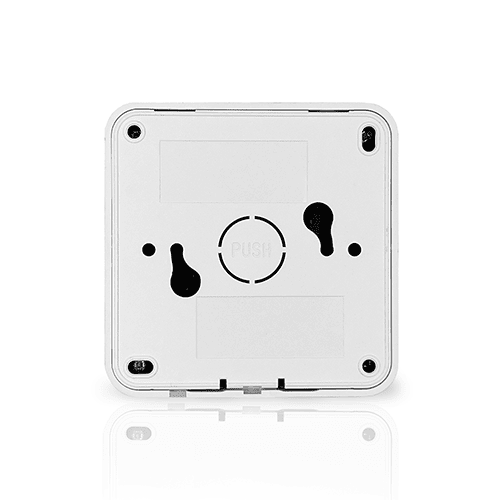

| Installation: | • Horizontal • Vertical (can be screwed to the wall or ceiling) |
| Enclosure material: | ABS (FR) |
| Level of protection: | IP40, UL94-V0 |
Sensor measuring range
Temperature:
| Measurement range: | –40°C to 125°C (-40°F to 257°F) |
| Accuracy: | ±0,2°C (at temperatures between 5°C and 60°C (41°F to 140°F)) |
Humidity:
| Measuring range: | 0% to 100% |
| Accuracy: | ±2% (relative humidity from 20% to 80%) |

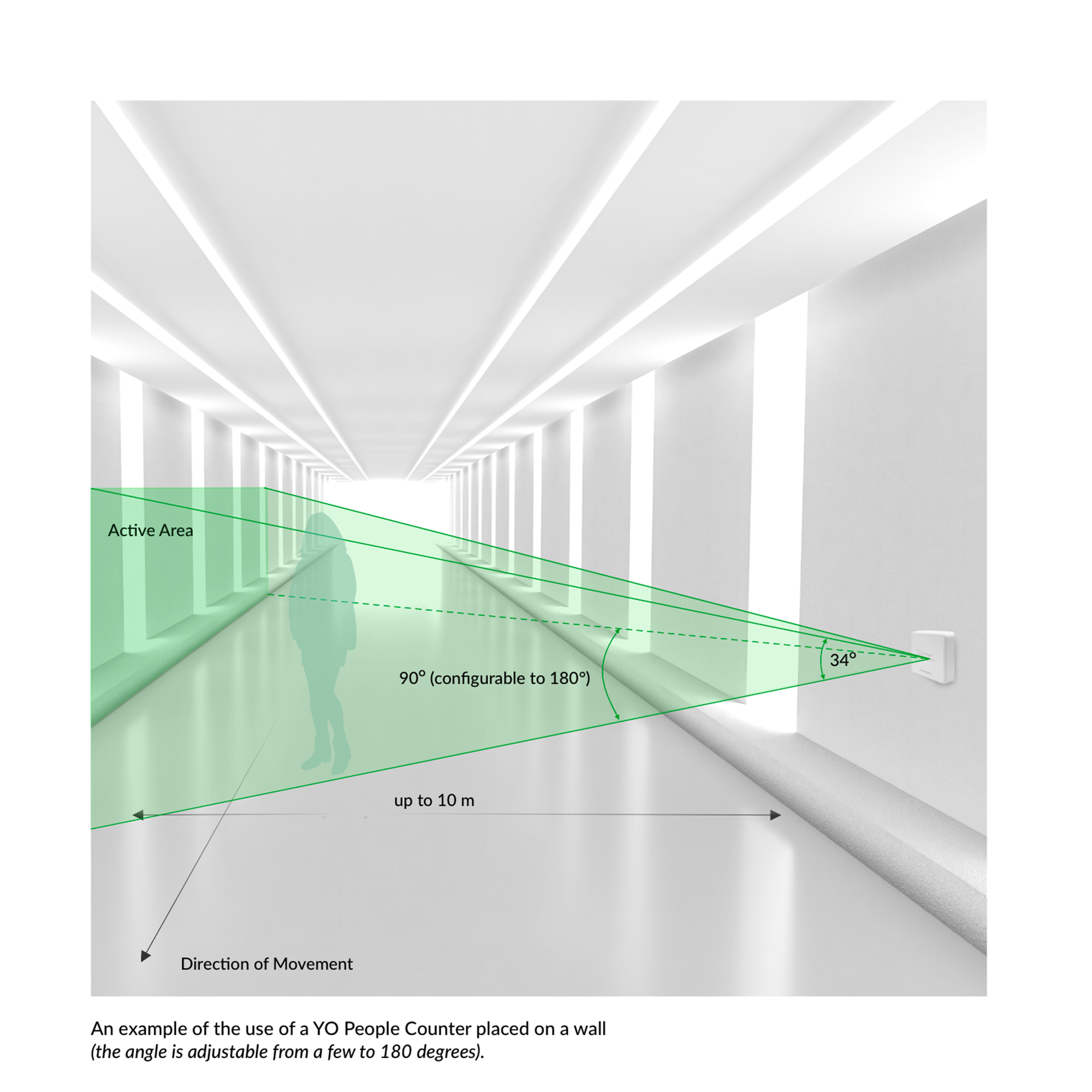

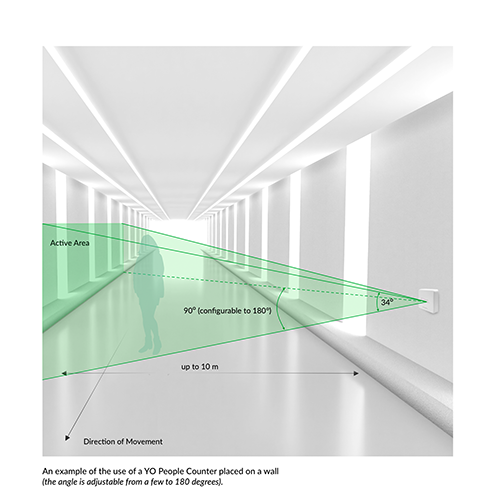

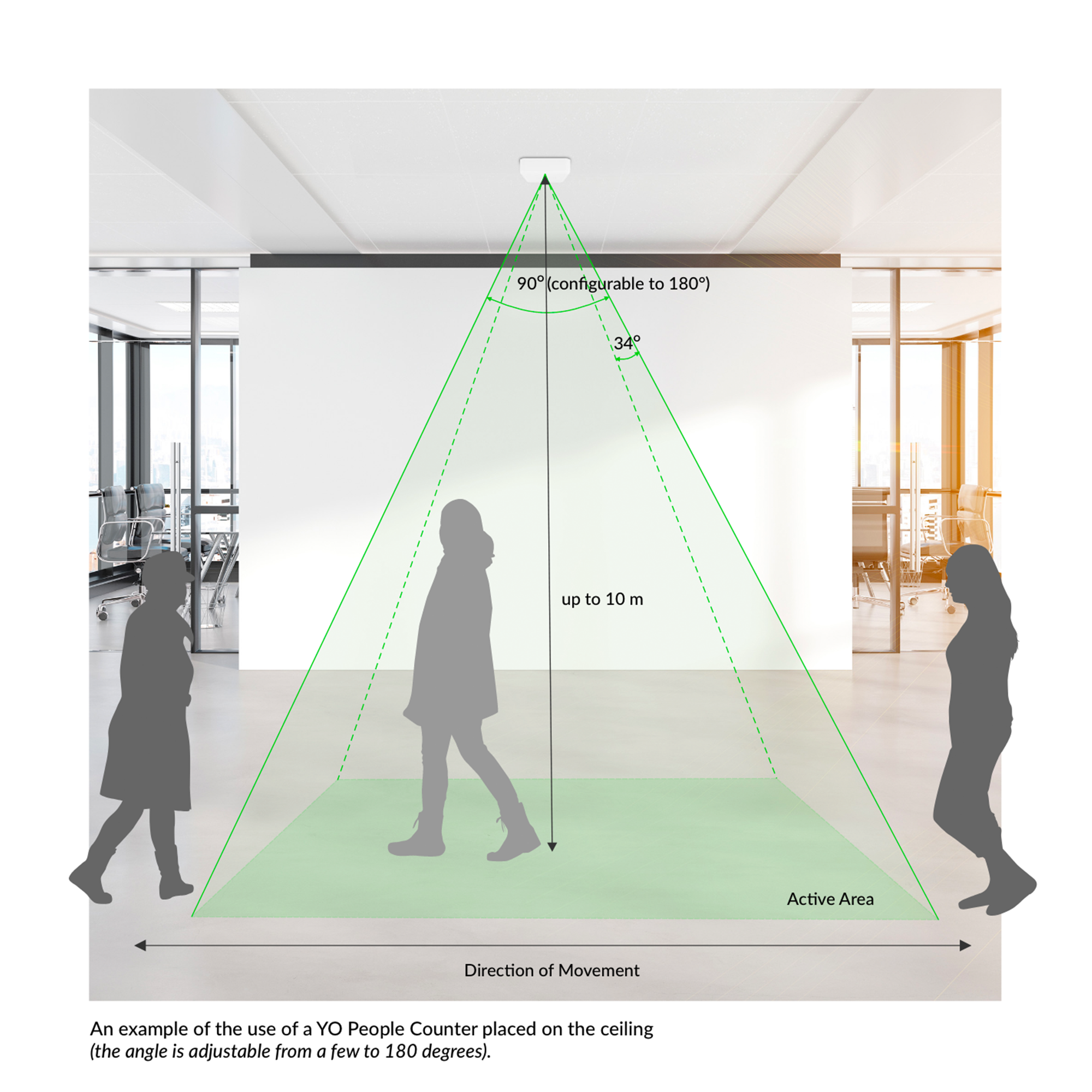

Radar motion detector:
| Frequency: | 24GHz |
| Beam Aperture: | 80° / 34° |
| Range: | 10-500cm |
