Products > YO Power
YO Power
LoRaWAN
Enclosure type • DIN rail, IP67
Band • EU868, US915, AU915, AS923
Colors
light grey
Additional probes • current clamp model A, current clamp model B
Certificate CE
quote request

Description

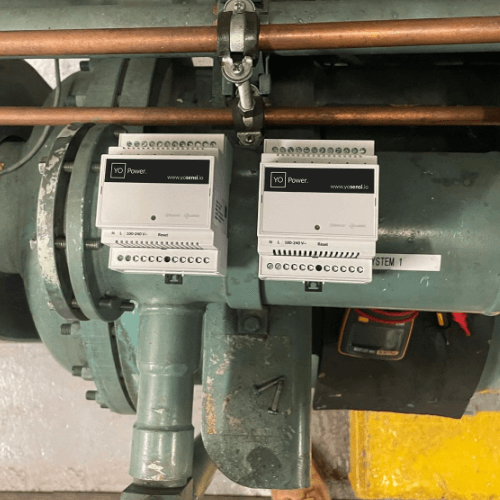

YO Power measures AC current flowing through devices connected to the mains. It can be fitted with up to six current clamps. It is possible to connect current-rated clamps with current output from almost every manufacturer. One YO Power device can measure multiple currents simultaneously (e.g. in one three-phase device, two three-phase devices, six single-phase devices, three single-phase devices, etc.).

The device offers automatically switchable measurement ranges: 2 A, 10 A, 50 A, 100 A., which results in even greater precision when measuring current. Each channel can measure current over different measuring ranges simultaneously.

YO Power helps users quickly diagnose irregularities resulting from, for example, excessive electricity consumption, preventing errors and production downtime.

The device communicates wirelessly over LoRaWAN. We are a certified member of the LoRa Alliance, which is responsible for data transmission security.

Key features

  • Monitors up to 6 current clamps
  • Possibility of connecting current-rated clamps with current output from almost every manufacturer
  • Automatically switchable measurement ranges: 2 A, 10 A, 50 A, 100 A
  • Each channel can measure current over different measuring ranges simultaneously
  • Reverse polarity of current clamps protection
  • 35 mm DIN rail or an IP67-sealed enclosure

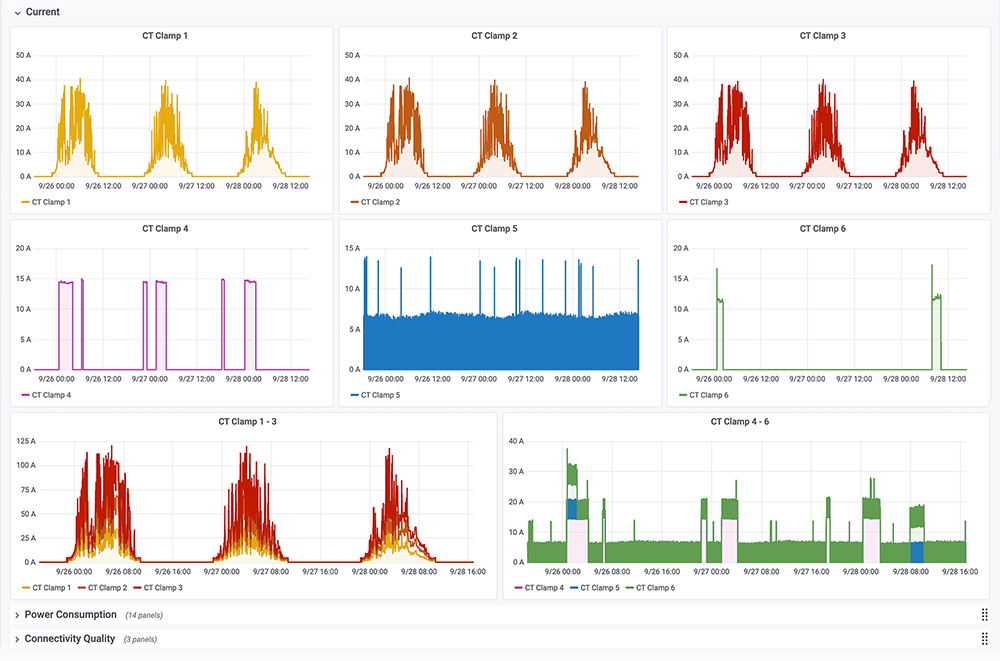

  • An algorithm that effectively maps power consumption
  • Non-invasive mounting without interrupting equipment operations
  • Supported LoRaWAN network type: private or public and connection over ABP or OTAA
  • ISM band selectable for regional needs (EU868, US915, AU915, and AS923)
  • Configuration via Bluetooth Low Energy 5.0
  • Firmware update over BLE
  • Command Line Interface application for convenient device configuration
  • Wide network coverage and relatively low energy consumption
  • High-quality product made in EU

Parameters

Tx Power: • LoRa EU868: to +14 [dBm]
• LoRa US915, AU915, AS923: to +22 [dBm]
• Bluetooth Low Energy (BLE): -20 to +6 [dBm]
Power supply: • 6 - 30 V DC
• 5 - 21 V AC
Power consumption: • Typical: 12mA DC (12 V DC)
• Maximum: 120mA DC (12 V DC)
Weight: • 146 g
Certificates: CE

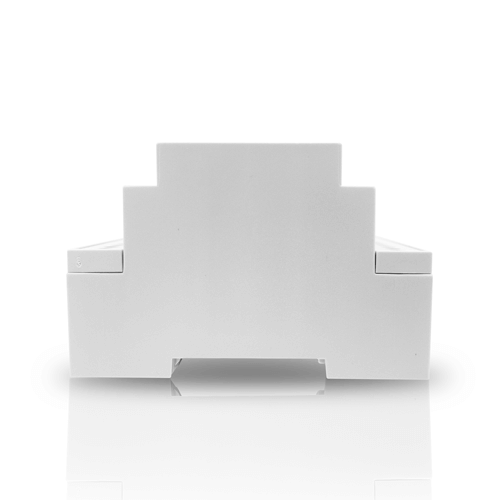

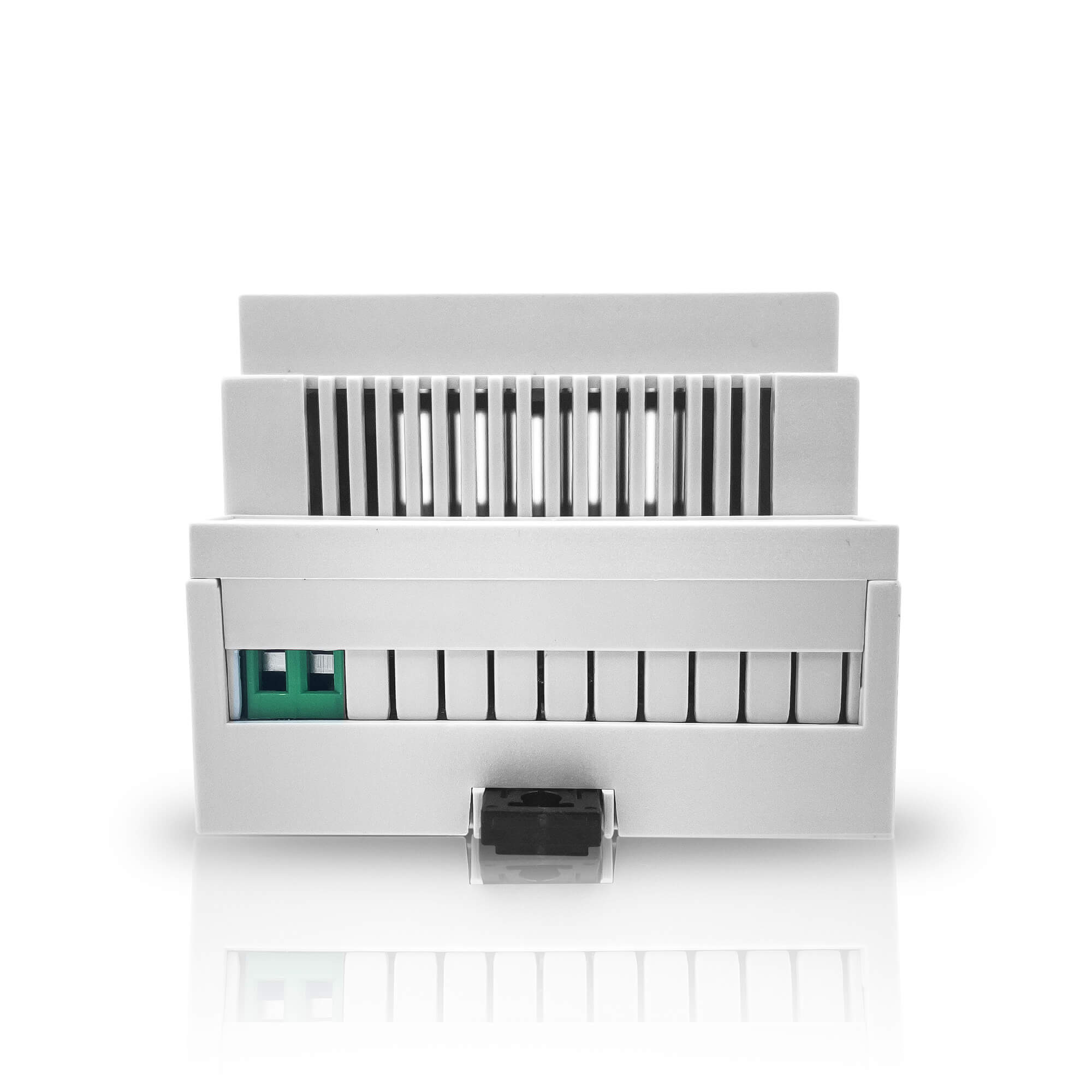

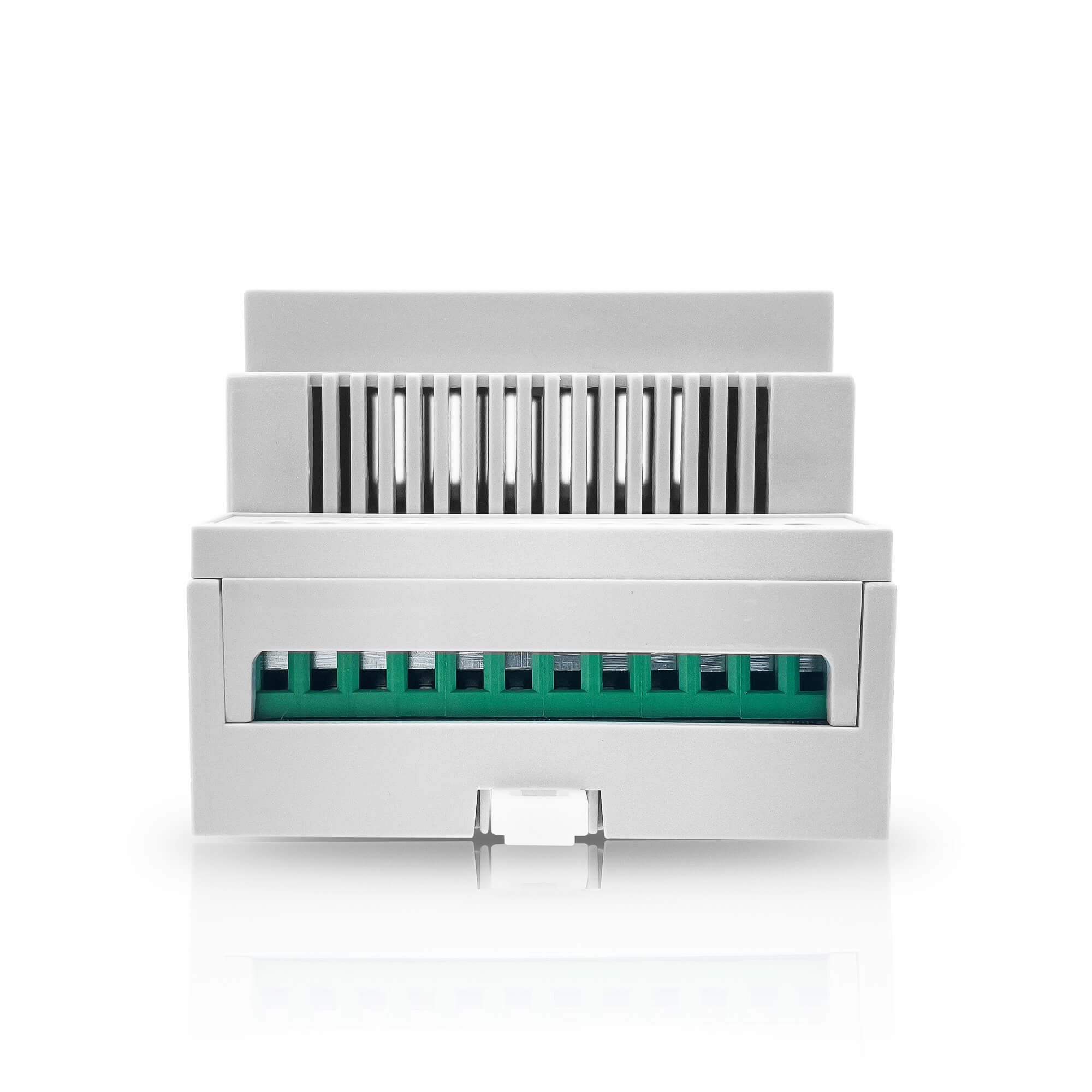

Enclosure

Dimensions: • Height: 90 mm
• Width: 71.2 mm (4 pole)
• Depth: 58 mm
Colour: Light grey (RAL 7035)

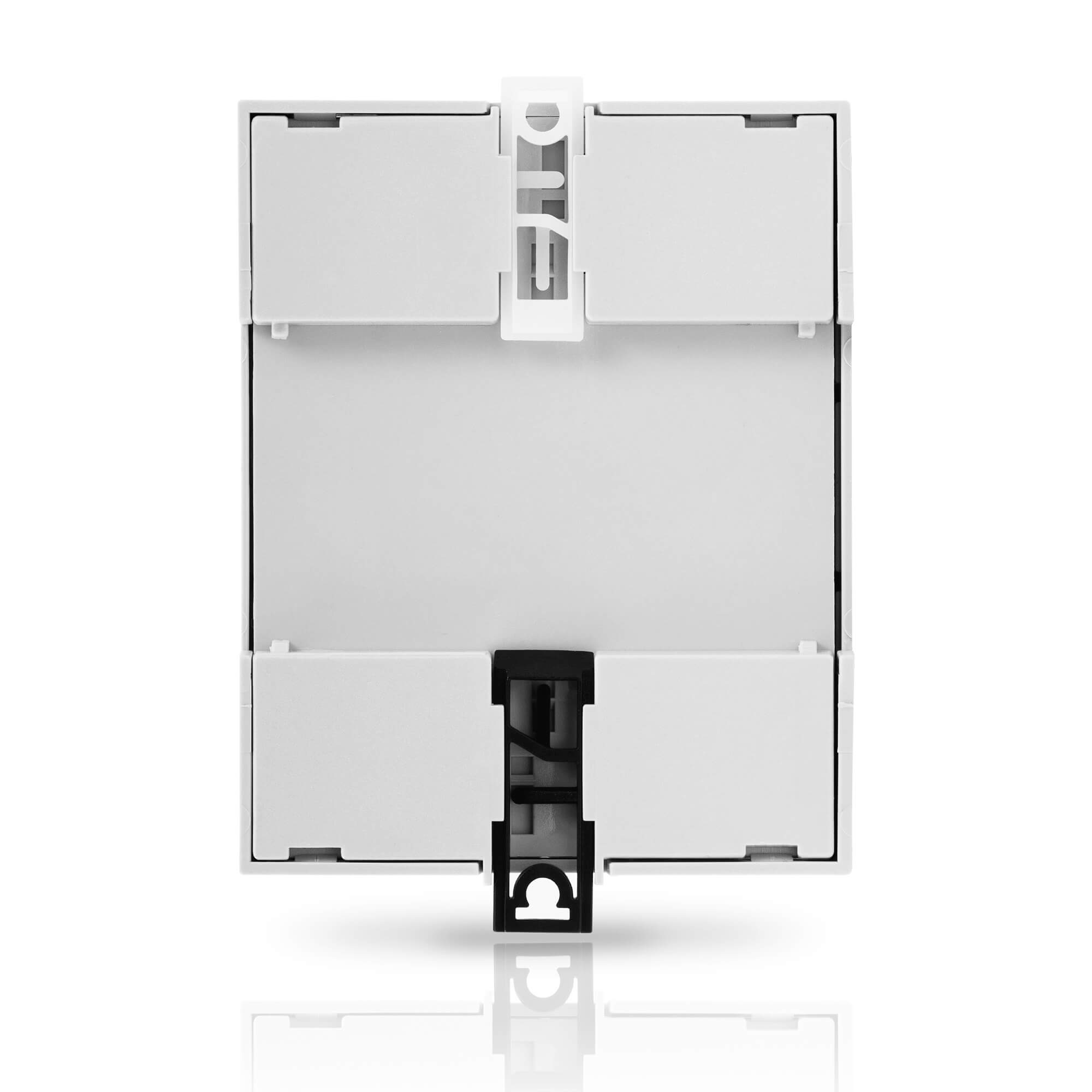

Installation: 35 mm DIN rail standard
Enclosure material: Polycarbonate
Fire resistance class: UL94 - VO
Level of protection: IP20

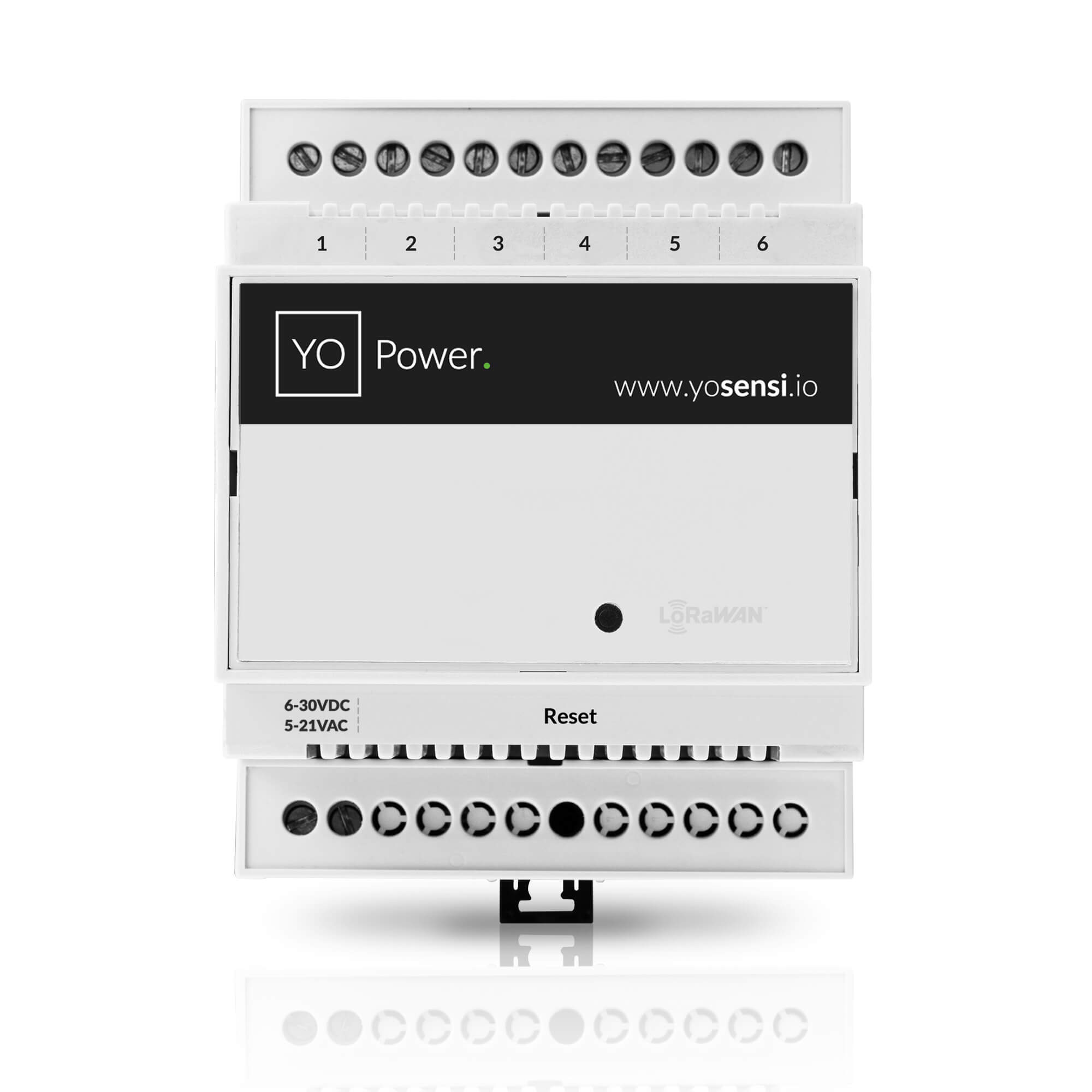

1 2 3 4 5 6 6-30VDC 5-21VAC Reset 45 mm58 mm

Additional probes

Current clamps Model A Model B
Dimensions: • Height: 57 mm
• Width: 32 mm
• Depth: 22 mm
• Cable length: 1 m
• Height: 75.5 mm
• Width: 67.5 mm
• Depth: 24 mm
• Cable length: 1 m
Installation: For a cable with a maximum diameter of 13 mm For a cable with a maximum diameter of 27 mm
Enclosure material: Polycarbonate
Maximum working voltage: 660 V 720 V
Dielectric strength: 6 kV AC 50 Hz / 1 min 3,5 kV AC 50 Hz / 1 min
Working temperature: -25°C ~ + 70°C (77°F ~ 158°F)
Fire resistance class: UL94 - VO
Measuring range: 0 - 100 A - accuracy ± 1 % 0 - 160 A - accuracy ± 3 %
