Description
YO Thermostat is a compact, wireless, battery-operated device designed for comprehensive indoor ambience monitoring. It measures temperature, humidity, illuminance, and optionally CO2 levels. Featuring an infrared presence sensor with a built-in occupancy counter, it tracks the number of people in a room in real-time, offering valuable insights into indoor conditions and room occupancy.
The device uses an integrated sensor to measure room temperature and a PID controller to compare it to a desired setpoint, ensuring precise and consistent temperature control. The control signals are transmitted via LoRaWAN, and the states received should be used to control actuators. Ideal for offices, stores, classrooms, hospitals, and more, YO Thermostat enhances occupant comfort, productivity, and overall well-being. Note that YO Thermostat is not an actuator; it requires a relay, such as YO Relay Switch, to control heaters, HVAC systems, etc.
Key features
- Functions as a PID controller for room temperature
- Measures temperature, humidity, illuminance, and optional CO2 levels
- Infrared presence sensor with built-in occupancy counter
- Integrated PID controller for precise temperature regulation
- Real-time monitoring of indoor conditions and occupancy
- Wireless and battery-operated for flexible installation
- Requires YO Relay Switch or similar relay for actuator control
- Supported LoRaWAN network type: private or public and connection over ABP or OTAA
- ISM band selectable for regional needs (EU868, US915, AU915, and AS923)
- Configuration via Bluetooth Low Energy 5.0
- Firmware update over BLE
- Easy management of the device via the free Yosensi Mobile Application
- Yosensi Configuration Web Tool for convenient firmware updates and device configuration
- Wide network coverage and very low energy consumption
- High-quality product made in EU

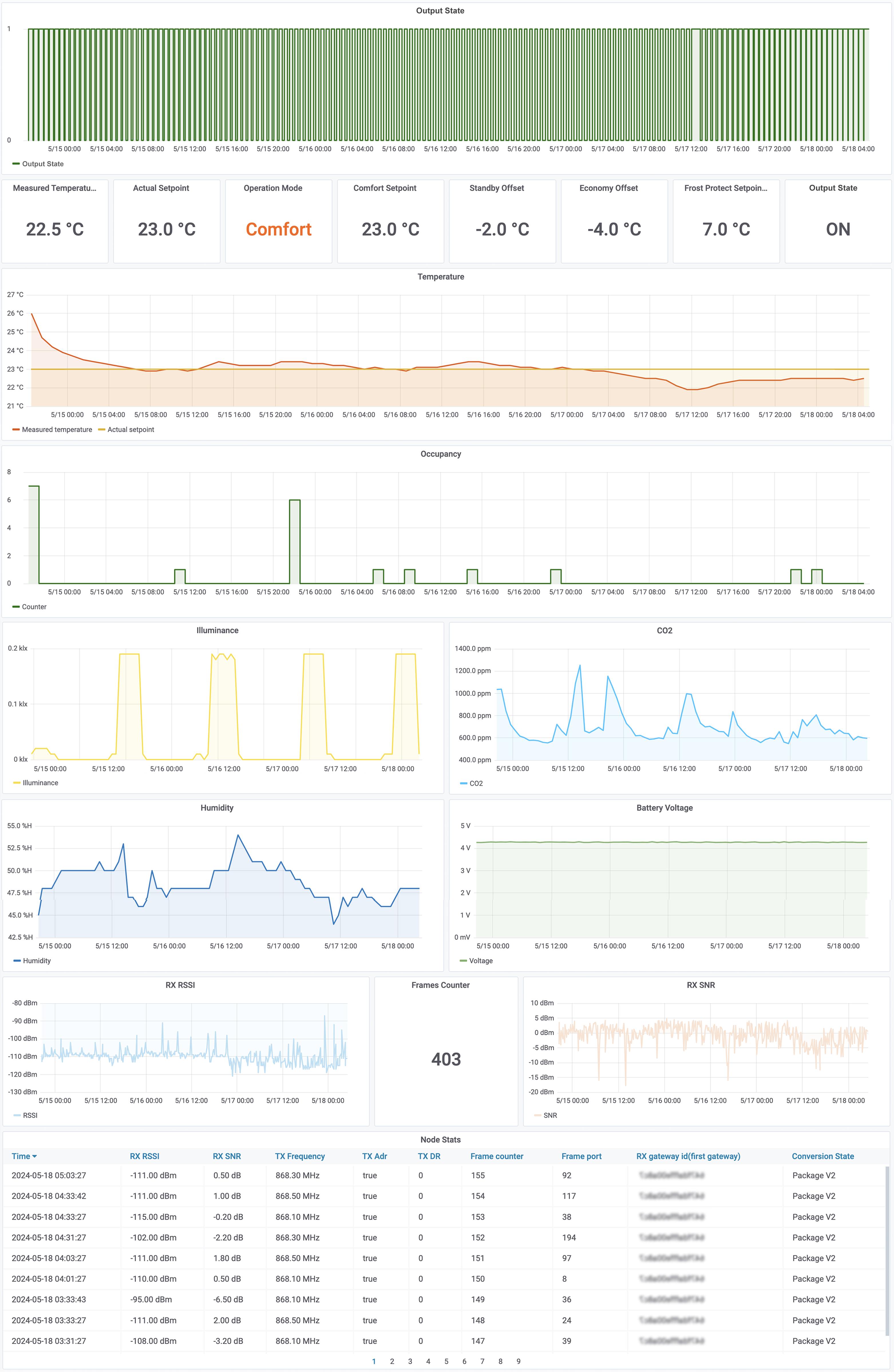

Sample charts of collected data
Parameters
| Tx Power: | • LoRa EU868: to +14 [dBm] • LoRa US915, AU915, AS923: to +22 [dBm] • Bluetooth Low Energy (BLE): -20 to +6 [dBm] |
| Power supply: | • 3 x AA battery (3 x 1,5 V) |
| Power consumption: | • Maximum: 120mA DC (4,5 V DC) |
| Weight: | • 82,5 g |
| Certificates: |
|
Enclosure
| Dimensions: | • Height: 25,5 mm • Width: 86 mm • Depth: 86 mm |
| Colour: | White |

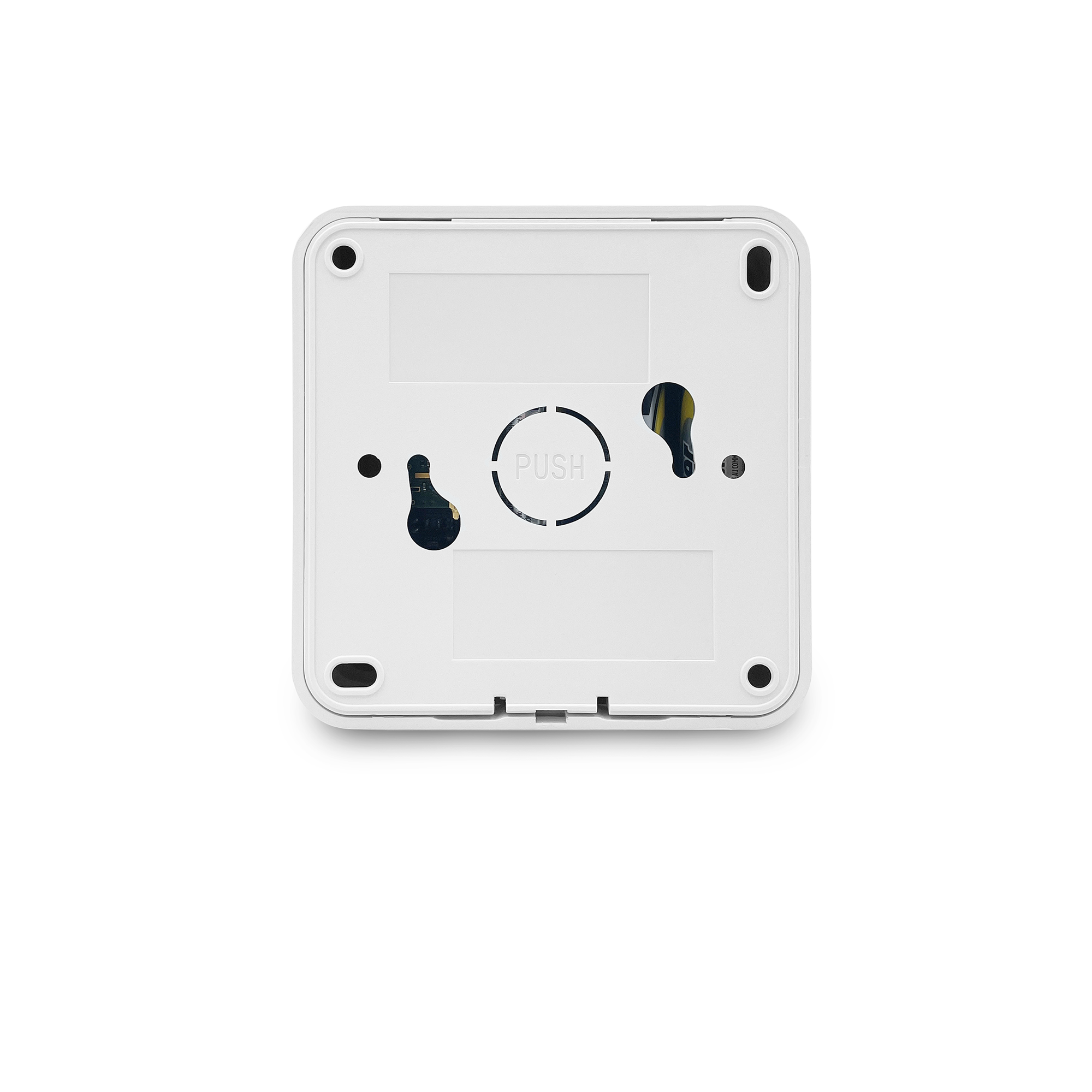

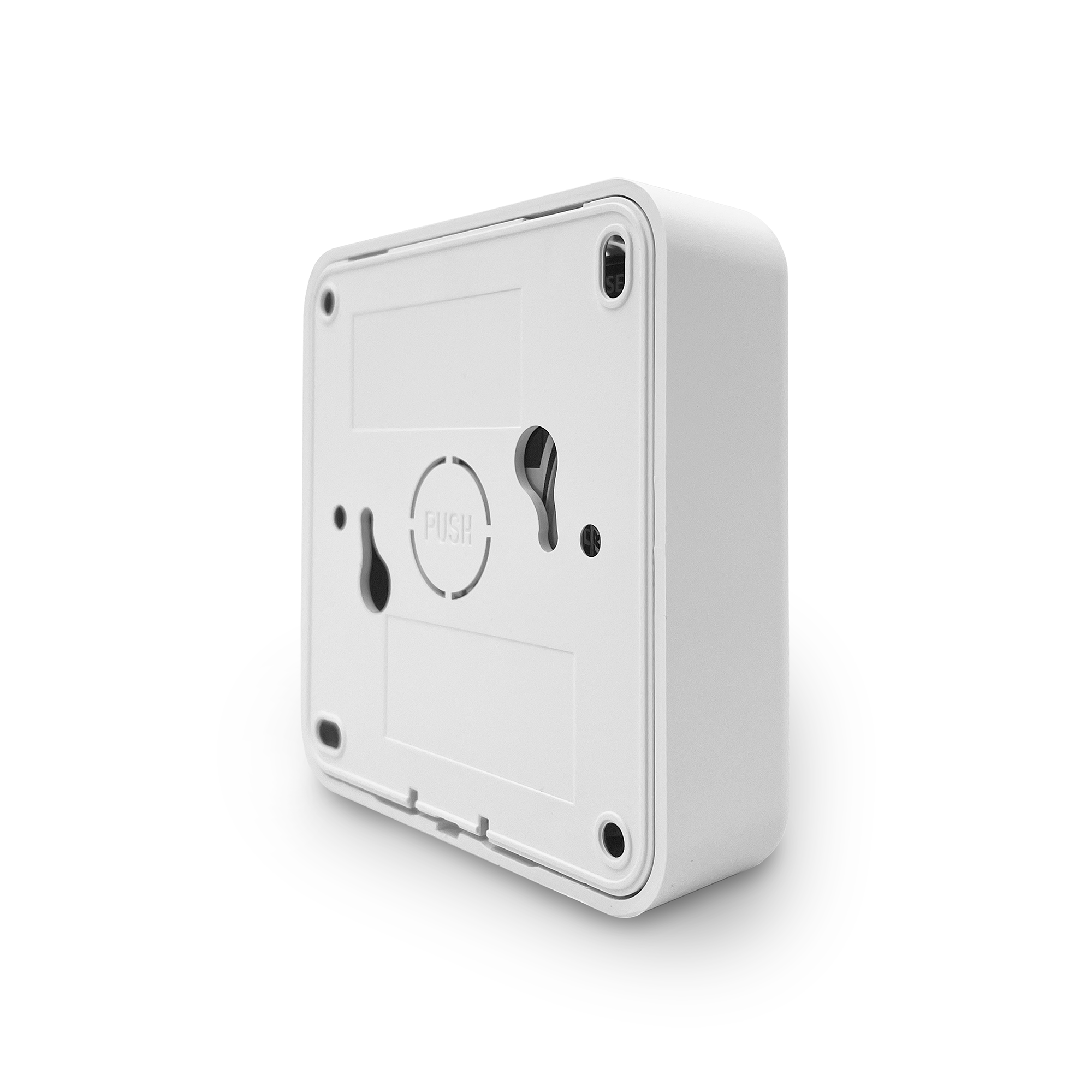

| Installation: | • Horizontal • Vertical (can be screwed to the wall) |
| Enclosure material: | ABS (FR) |
| Level of protection: | IP40, UL94-V0 |
Sensor measuring range
Temperature:
| Measurement range: | –40°C to 125°C (-40°F to 257°F) |
| Accuracy: | ±0,2°C (at temperatures between 5°C and 60°C (41°F to 140°F)) |
Humidity:
| Measurement range: | from 0% to 100% |
| Accuracy: | ±2% (relative humidity from 20% to 80%) |
CO2 (optional):
| Measurement range: | 0 ppm to 40 000 ppm |
| Recommended working conditions: | -10 - 60 °C (14°F to 140°F) / from 0% RH to 95% RH |
| Accuracy of measurements: | ±(40 ppm+5%) (in the measuring range from 400 ppm to 5000 ppm) |
Illuminance:
| Measurement range: | 0 lx to 120 klx |
| Recommended working conditions: | -25°C to 85°C (-13°F to 185°F) |
| Accuracy: | 10% (in temperature 25°C (77°F) |
Infrared presence sensor:
| Measurement range: | 0 to 4,5 meters, 80° field of view |
