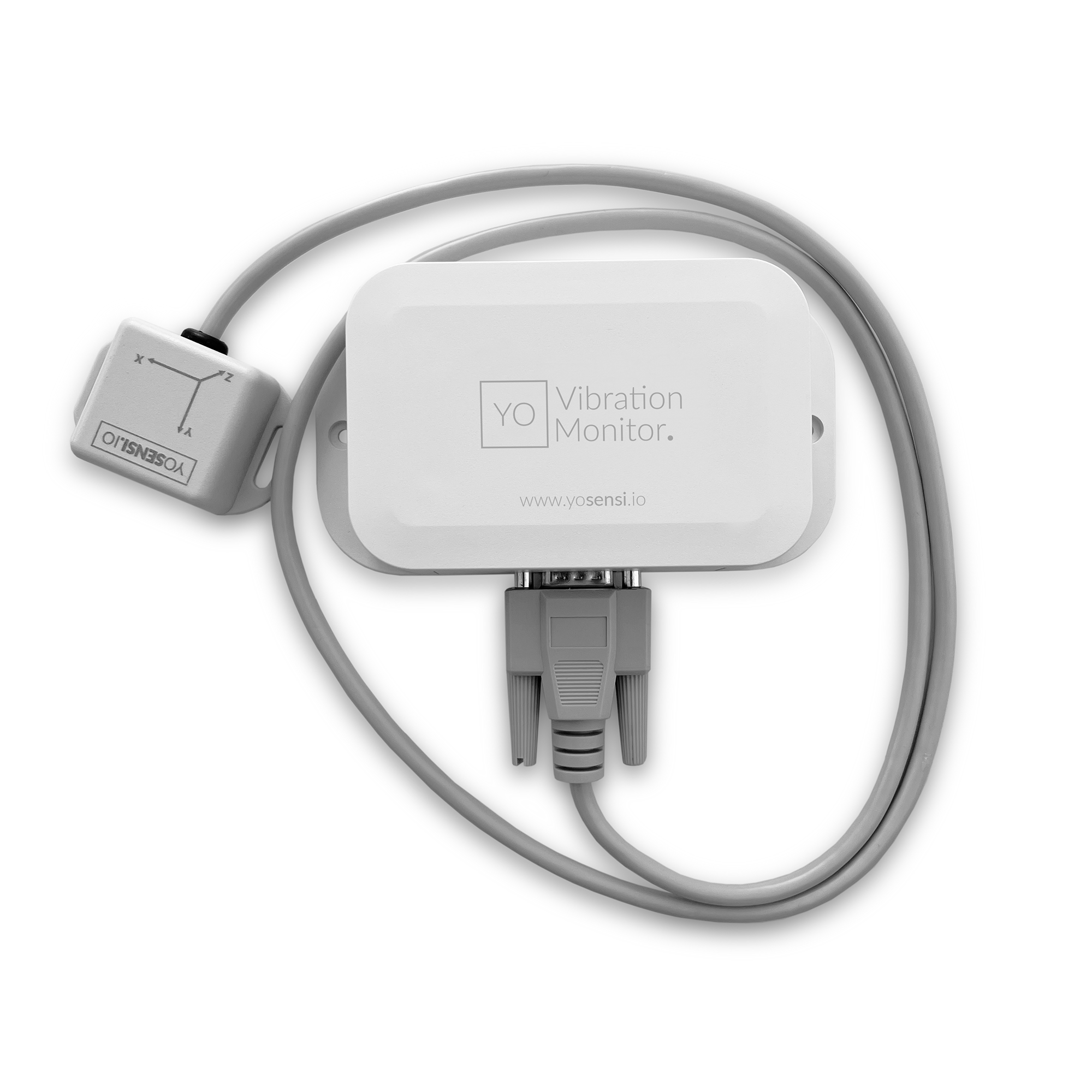

YO Vibration Monitor
Enclosure type
• IP40
Band
• EU868, US915, AU915, AS923
Colors
white
Certificate
•
quote
request
Description

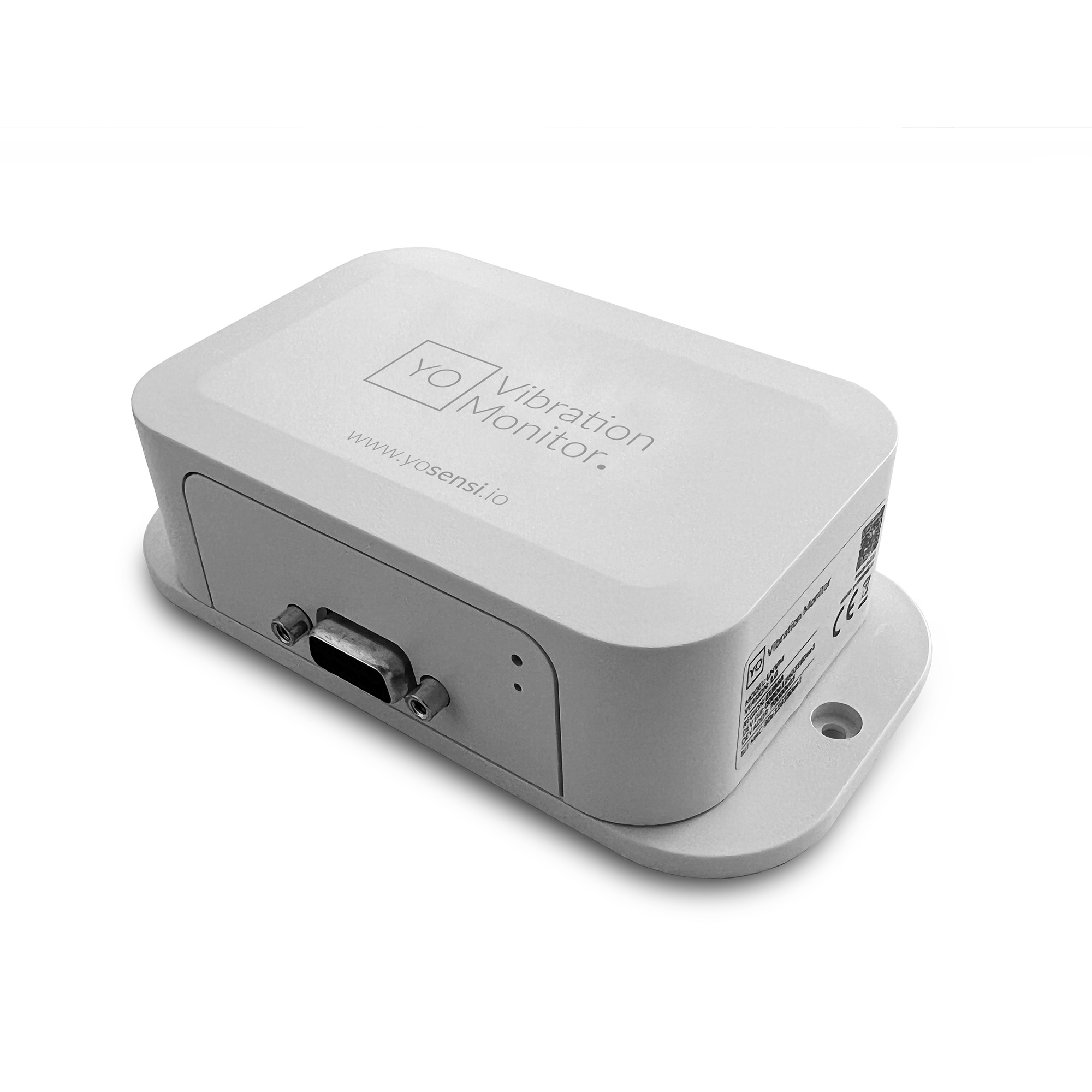

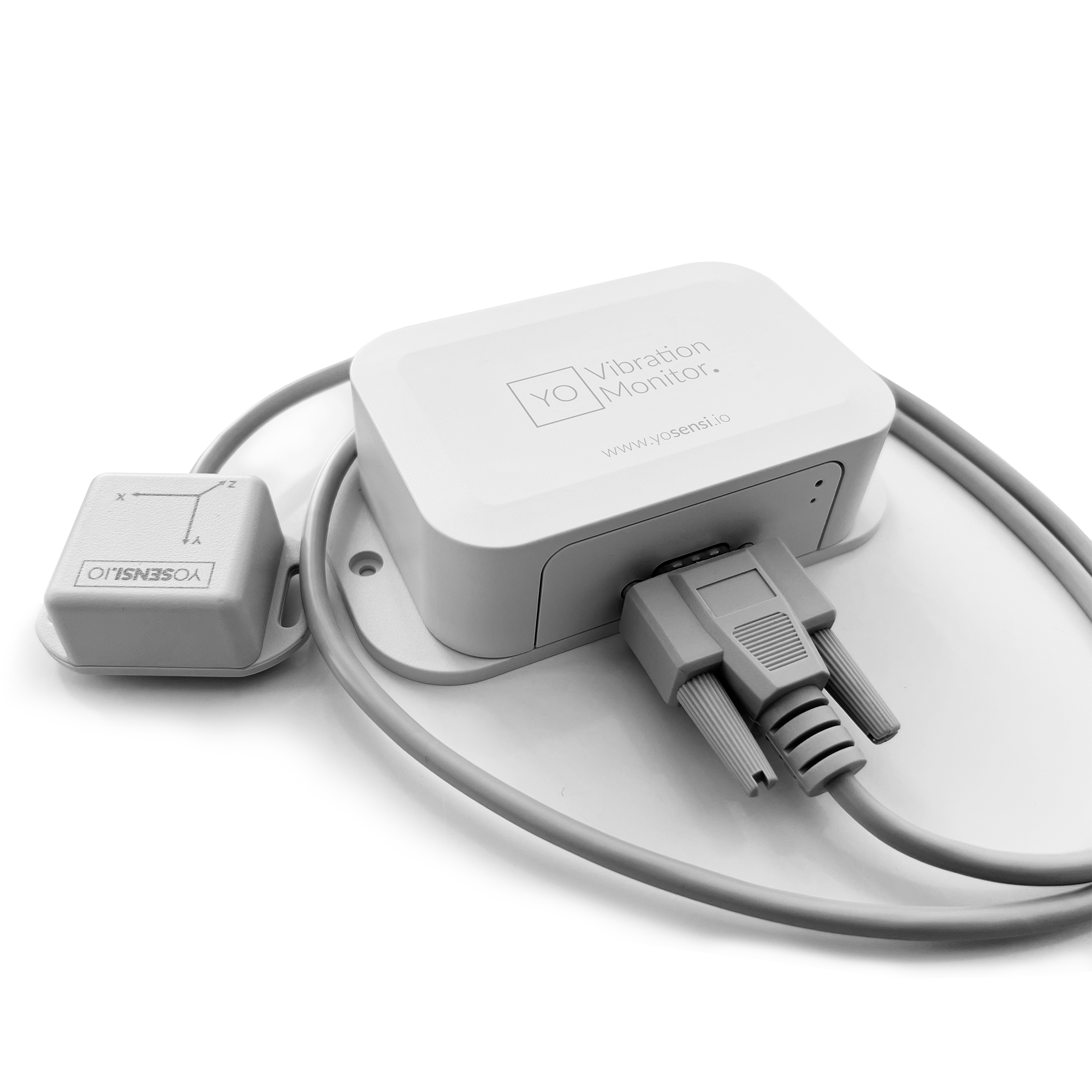

YO Vibration Monitor is a device for monitoring vibrations in electric motors. The vibration sensor includes an accelerometer and a temperature sensor. Additionally, the device is equipped with internal temperature and relative humidity sensors.
The device uses 3-axis composite measurements to detect vibrations and transmits data via LoRaWAN. Its installation is non-invasive as it is battery-powered and does not require additional cables.
The device is used in predictive maintenance for monitoring the condition of machines, production lines, and similar applications. YO Vibration Monitor replaces traditional inspections, enabling remote detection and continuous monitoring.
Key features
- 3-axis vibration and temperature sensor
- Several convenient mounting options, including magnet mounting
- Easy installation without the need for additional wiring
- Enables predictive maintenance of machines and production lines
- Replaces traditional inspections by enabling remote detection and monitoring of electric motors
- Advanced LoRaWAN device for continuous remote monitoring
- Battery-powered device
- Supported LoRaWAN network type: private or public and connection over ABP or OTAA
- ISM band selectable for regional needs (EU868, US915, AU915, and AS923)
- Configuration via Bluetooth Low Energy 5.0
- Firmware update over BLE
- Yosensi Configuration Web Tool for convenient firmware updates and device configuration
- Wide network coverage and very low energy consumption
- High-quality product made in EU

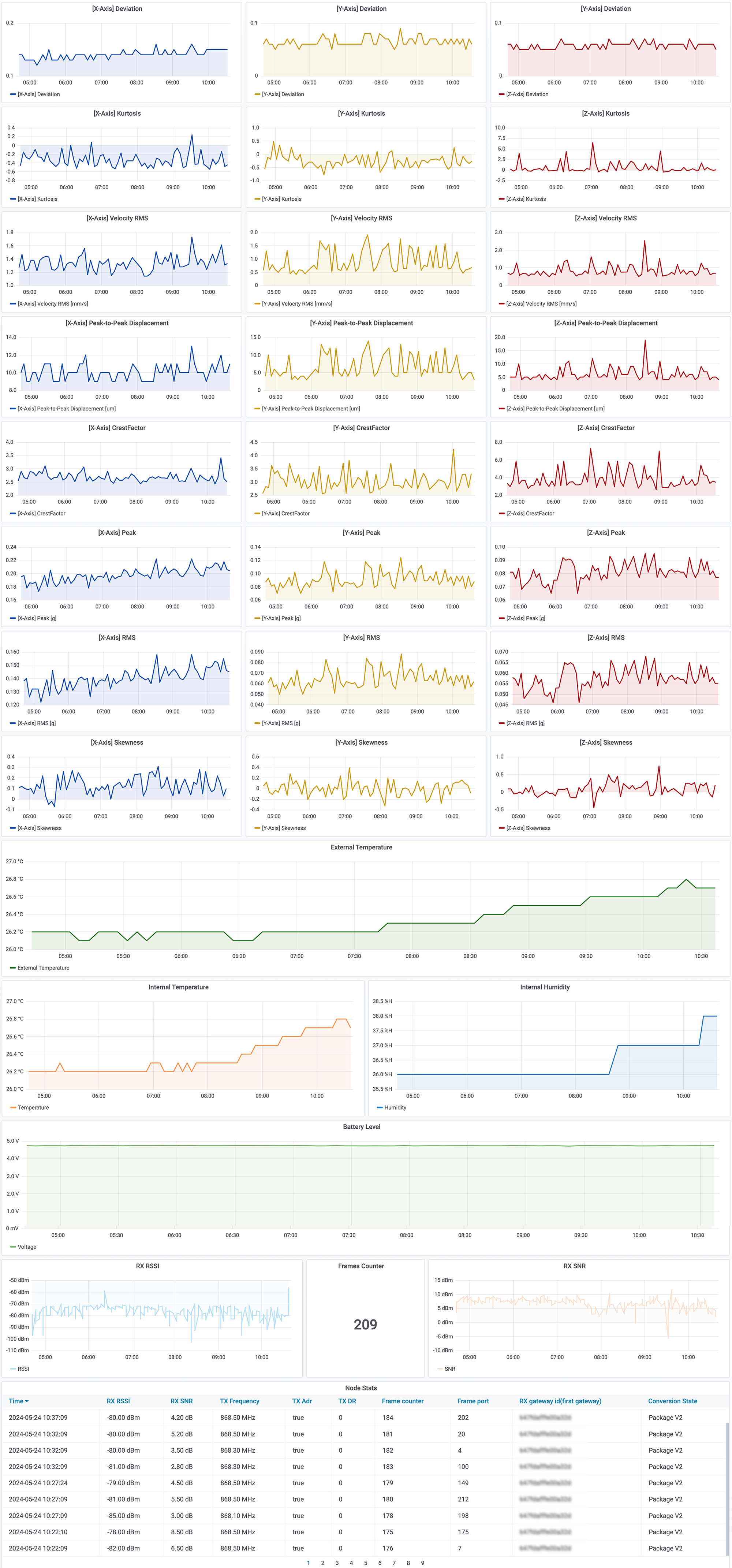

Sample charts of collected data
Parameters
| Tx Power: | • LoRa EU868: to +14 [dBm] • LoRa US915, AU915, AS923: to +22 [dBm] • Bluetooth Low Energy (BLE): -20 to +6 [dBm] |
| Power supply: | • 3 × AA battery (3 x 1,5 V) |
| Power consumption: | • Maximum: 120 mA (4,5 VDC) |
| Weight: | • 106 g (without batteries) |
| Certificates: |
|

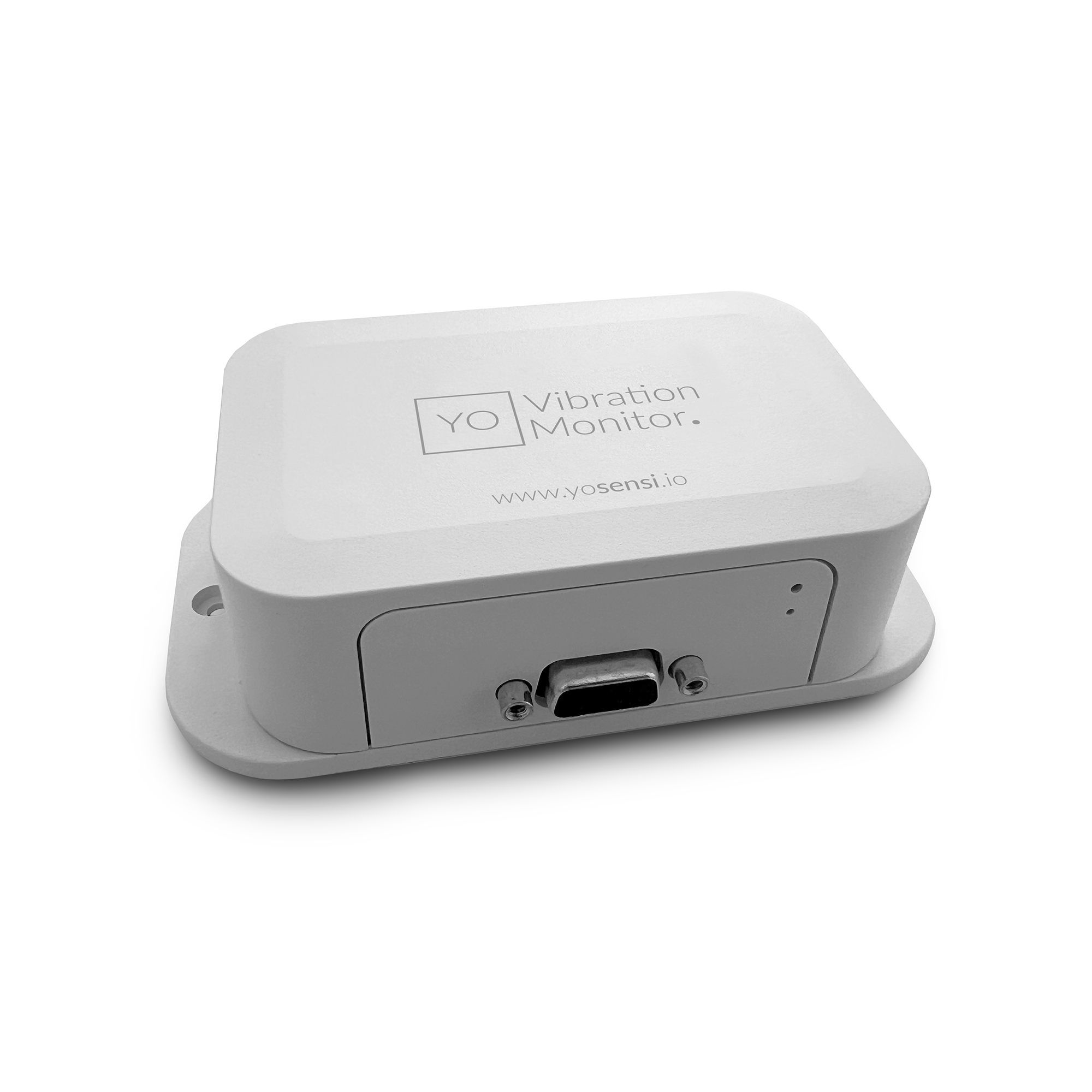

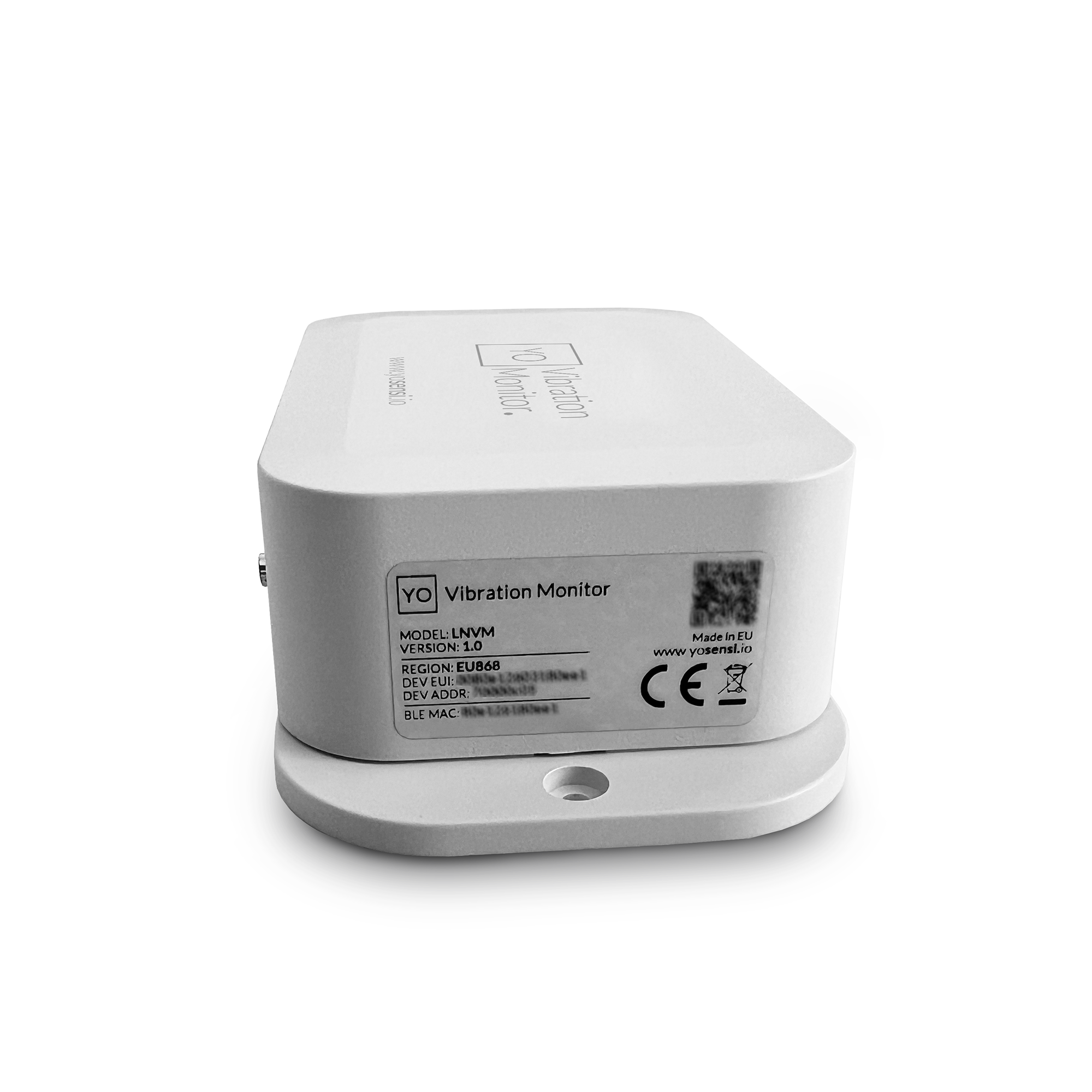

Enclosure of the device
| Dimensions: | • Height: 35 mm • Width: 67,3 mm • Depth: 124,3 mm |
| Colour: | White |
| Installation: | • Horizontal • Vertical (can be screwed to the wall) |
| Enclosure material: | ABS (FR) |
| Level of protection: | IP40 |

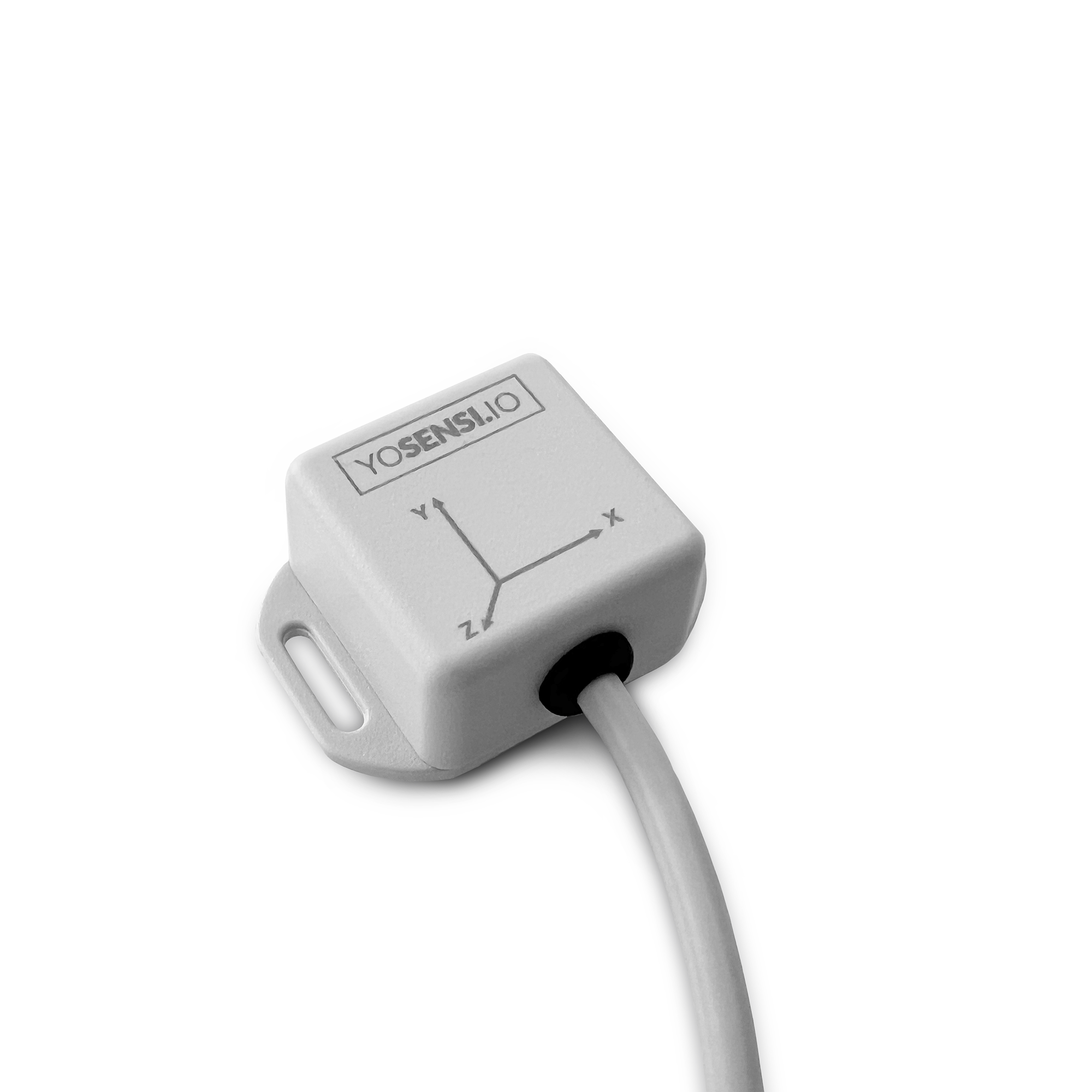

Enclosure of the vibration sensor
| Dimensions: | • Height: 35 mm • Width: 35 mm • Depth: 20 mm |
| Colour: | Grey |

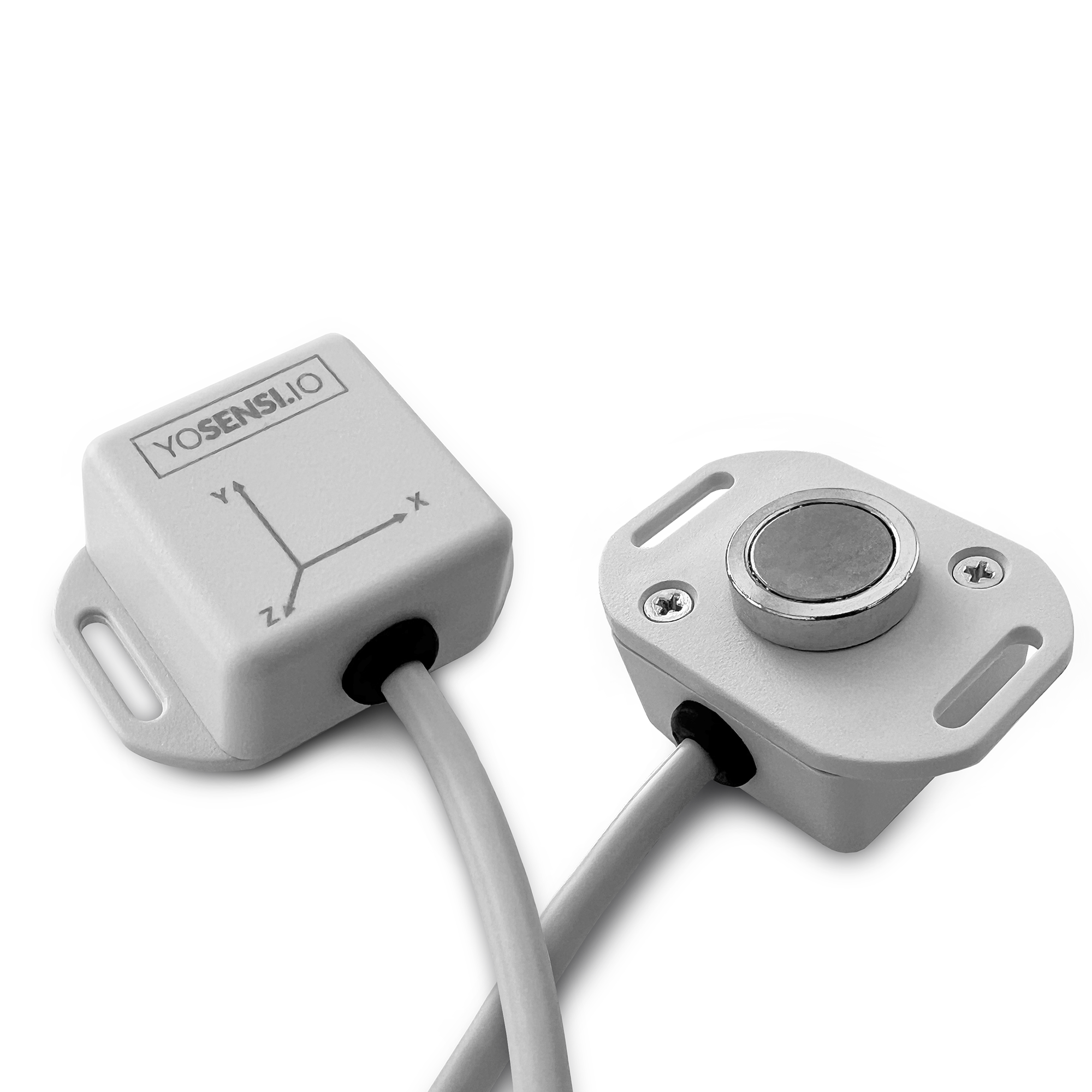

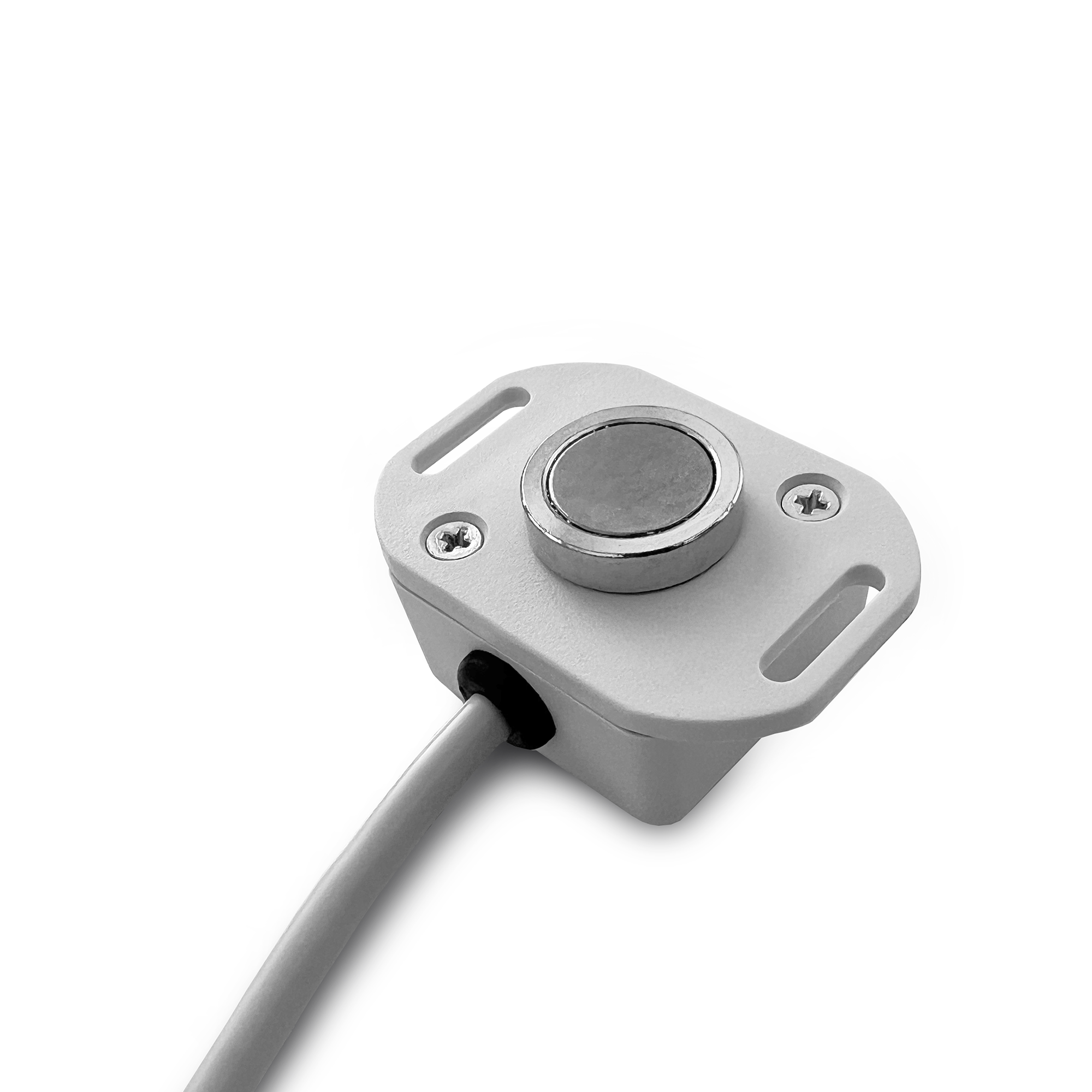

| Installation: | • Magnet Mounting (on request) • Internal Thread Mounting • External Thread Mounting • Mounting Bracket |
| Enclosure material: | ABS (FR) |
| Level of protection: | IP67 |
Measuring range
Temperature:
| Measurement range: | –40°C to 125°C (-40°F to 257°F) |
| Accuracy: | ±0,2°C (at temperatures between 5°C and 60°C (41°F to 140°F)) |
Humidity:
| Measuring range: | 0% to 100% |
| Accuracy: | ±2% (relative humidity from 20% to 80%) |
Acceleration X-Y-Z::
| Amplitude range: | ±16 g |
| Sensitivity: | 0.488 mg/LSB |
| Noise X/Y/Z: | 75/75/110 µg/√Hz |
| Frequency range: | 10 to 6300 Hz |
| Vibration data: | Acceleration RMS, peak, Velocity RMS, Displacement, Crest factor |
| Statistical data: | Standard deviation, Skewness, Kurtosis |
