YO Pulse enables monitoring of logical states of devices and processes in automation and collection of pulses from measuring devices (e.g. water meters).
The device provides six configurable measurement inputs, each of which can operate in one of three modes: normally open contact monitoring, normally closed contact monitoring, and pulse counting.
The device enclosure has been designed to mount on electrical switchboards or automation cabinets on standard 35 mm DIN rails. YO Pulse is also available in an IP67-sealed enclosure (IP67-sealed enclosure is not adapted for mounting on a DIN rail).
YO Pulse operates on LoRaWAN. We are a member of the LoRa Alliance, which is responsible for data transmission security.
- 6 configurable measurement inputs
- 3 measurement input modes to choose from: normally open contact monitoring, normally closed contact monitoring, and pulse counting
- Galvanic isolation of input paths for detecting external voltages
- External voltage detection regardless of polarity
- 35 mm DIN rail enclosure
- Supported LoRaWAN network type: private or public and connection over ABP or OTAA
- ISM band selectable for regional needs (EU868, US915, AU915, and AS923)
- Configuration over Bluetooth Low Energy 5.0
- Firmware update over BLE
- Yosensi Configuration Web Tool for convenient firmware update and device configuration
- Wide network coverage and low energy consumption
- High-quality product made in EU

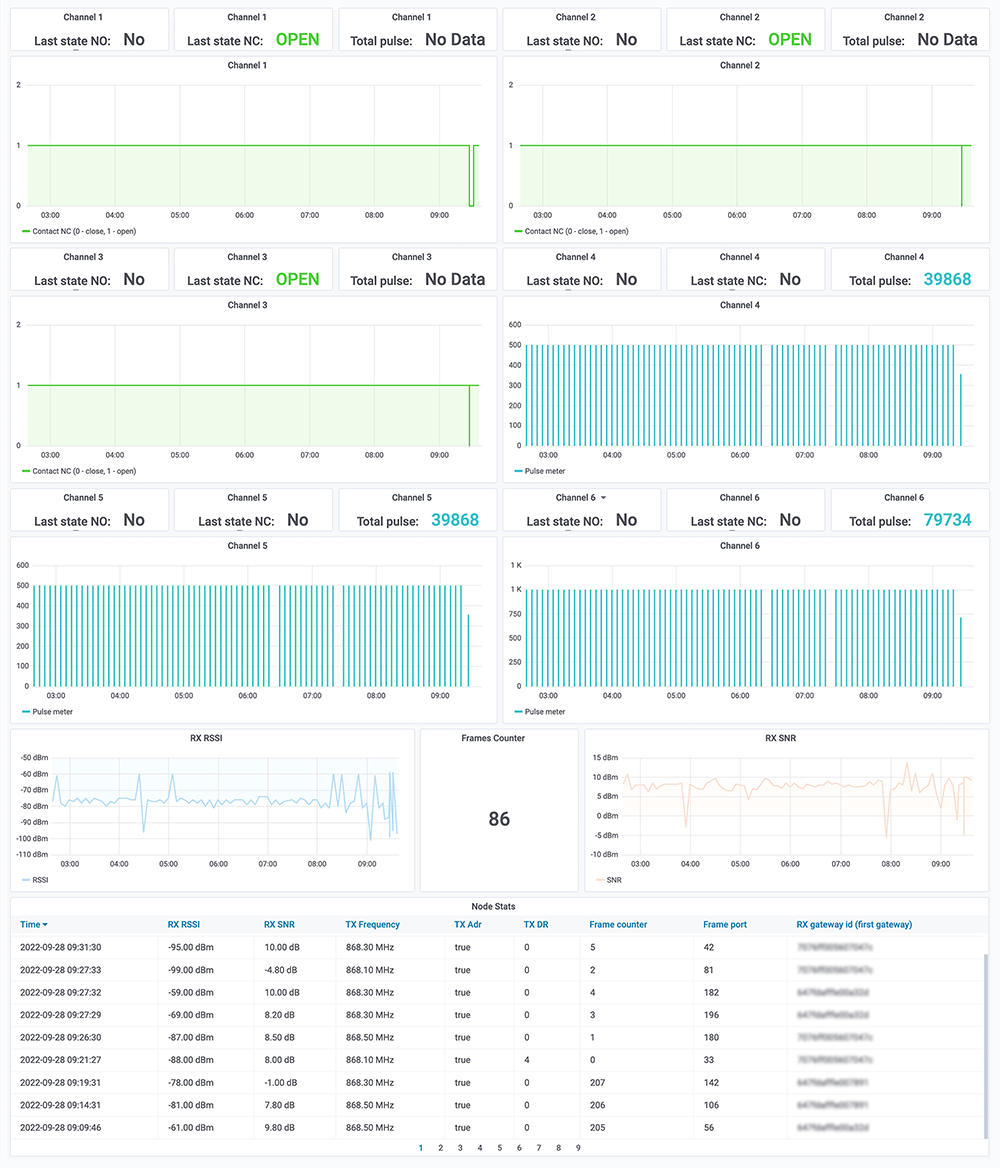

Sample charts of collected data
• LoRa EU868: to +14 [dBm]
• LoRa US915, AU915, AS923: to +22 [dBm]
• Bluetooth Low Energy (BLE): -20 to +6 [dBm]
• 6 - 30 V DC
• 5 - 21 V AC
• Typical: 20mA DC (12 V DC)
• Maximum: 110mA DC (12 V DC)
|Weight:||• 151 g|
• Height: 90 mm
• Width: 71.2 mm (4 modules)
• Depth: 58 mm
|Colour:||Light grey (RAL 7035)|
|Installation:||35 mm DIN rail standard|
|Fire resistance class:||UL94 - VO|
|Level of protection:||IP20|
